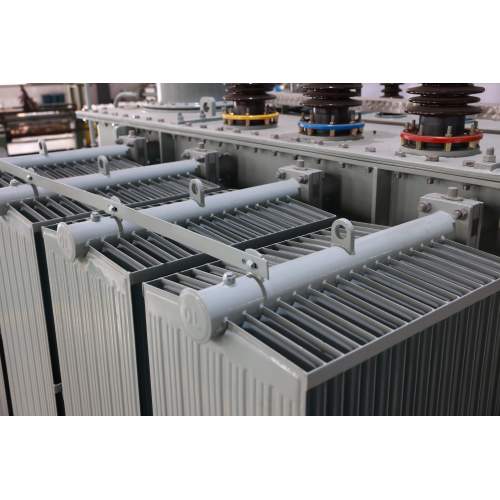

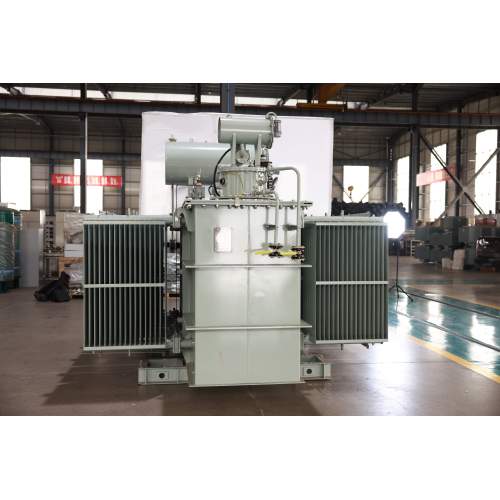

Oil-immersed Distribution Transformer Tank

Get Latest Price

Contact Now

Brand: JUTAI

Place Of Origin: China

Use: Power, Current, Electronic, High Frequency, Instrument

Phase: Three, Single

Coil Structure: Toroidal

Number Of Coils: Autotransformer

Description

Product Description

Oil-immersed Distribution transformer Tank

Introduction: Welcome to the next generation of oil-immersed Transformer Oil Storage Tank, where performance meets reliability. Our Superior Oil Immersed Transformer Tanks are designed to provide a robust and efficient housing solution for your transformers, ensuring they operate within the optimal temperature range and with minimal maintenance.

Key Highlights:

Durable and long-lasting construction: Our Oil-Immersed Transformer Tanks are made of high-strength materials that are resistant to corrosion and abrasion. Maintaining performance even in the most challenging environments will make your transformer last longer.
Optimized thermal performance: The oil conservator design ensures efficient heat dissipation, keeping the oil and Transformer Components cool and operating normally, and ensuring stable transformer performance.
Safety-oriented features: The tank is equipped with a pressure relief valve and breather to prevent overpressure and ensure safety.
Versatility and customization: Nationally standardized transformer tank design is suitable for a variety of Oil-immersed Transformer models and capacities.

Applications:

Power system：Corrugated transformer oil tanks are widely used in substations and transmission lines of power systems. Its fully sealed structure and elastic corrugated design can effectively prevent oxidation and contamination of transformer oil, while reducing the risk of leakage and improving the reliability and service life of transformers.
Smart grid：With the development of smart grid, the corrugated Transformer oil tank realizes real-time monitoring and remote monitoring of parameters such as oil temperature and pressure through built-in sensors, which can timely warn of faults and ensure the safe operation of the power system.
New energy field：In new energy projects, such as supporting substations for wind power generation and photovoltaic power generation, the efficient heat dissipation and volume compensation functions of the corrugated oil tank can meet the requirements of high reliability and low maintenance of transformers for new energy power generation equipment.
Urban power grid transformation：The corrugated transformer oil tank is suitable for urban power grid transformation projects due to its compact structure, light weight and good heat dissipation performance, especially in areas with limited space.
Rural power grid：In rural power grid reconstruction projects, corrugated transformer oil tanks can adapt to complex environmental conditions and reduce maintenance costs. At the same time, their good heat dissipation performance can effectively improve the operating efficiency of transformers.
Special environment applications：Corrugated transformer oil tanks can maintain stable operation in extreme temperatures and harsh environments (such as areas with strong winds and sand), and their corrugated structure can withstand the oil volume expansion caused by large temperature changes.
Industrial field：In industrial production, corrugated transformer oil tanks can be used to provide reliable power support for large industrial equipment. Their efficient heat dissipation and low noise characteristics can meet the environmental requirements of industrial production.

Technical features

(1) The transformer oil tank should be welded with high-strength steel plates. Anti-magnetic shielding measures should be taken inside the oil tank to reduce stray losses. The magnetic shielding should be well fixed and insulated to avoid overheating or discharge caused by poor contact.

All kinds of electrical shielding should be well conductive and reliably grounded to avoid suspended discharge or affect the dielectric loss factor of the winding.

(2) Two terminals for grounding the oil tank should be provided at the two diagonals at the bottom of the oil tank (the transformer oil tank, i.e., the shell grounding, is mainly to ensure personal safety.

When the insulation of the transformer is damaged, the transformer shell will be energized. If grounding measures are taken, the leakage current of the transformer will be conducted to the earth through the shell grounding device, thus avoiding personal electric shock accidents).

(3) The transformer oil tank should be equipped with the following valves: ① Drain valve of the transformer main oil tank and oil storage cabinet; ② Oil sampling valve (the oil sampling valve should have an internal thread of more than 8mm and be equipped with a removable plug); ③ Oil filtering, isolation, vacuuming, oil filling and emergency oil drain valves, etc.
