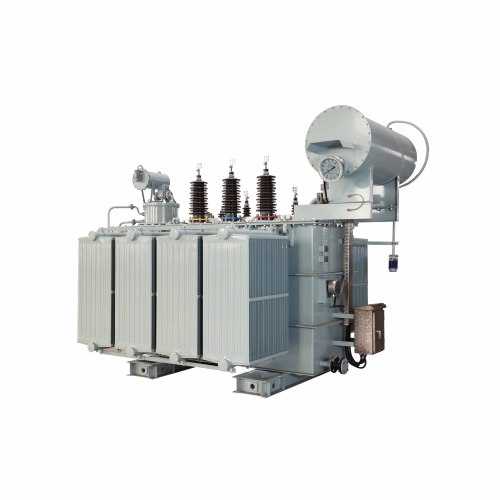

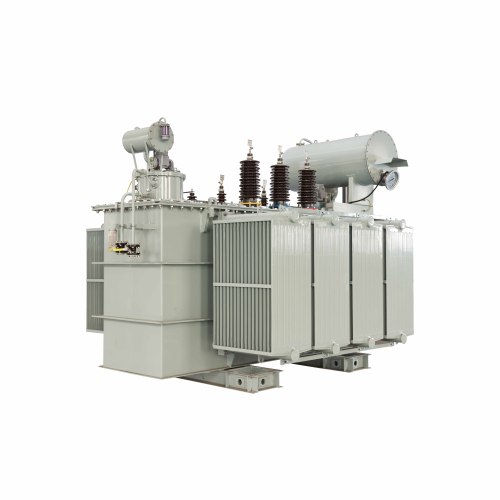

Oil-immersed transformer oil tank

Oil-immersed Transformer oil tank

Introduction: Elevate the performance and safety of your oil-immersed transformers with our Premium Transformer Oil Storage Tank. These Oil Immersed Transformer Tanks are the culmination of our commitment to engineering excellence, providing a secure and efficient environment for your transformers to operate at their best.

Key Features:

• Elastic corrugated structure: The core feature of the corrugated oil tank is its corrugated tank wall design. This design gives the oil tank the ability to deform elastically, and it can expand and contract as the volume of the transformer oil changes, thereby achieving volume compensation.
• Fully sealed structure: The corrugated oil tank usually adopts a fully sealed design to effectively isolate the outside air and moisture and prevent oxidation and contamination of the transformer oil. Good heat dissipation performance: The corrugated structure of the corrugated oil tank not only has the function of elastic compensation, but also increases the heat dissipation area and improves the heat dissipation efficiency.
• Small size and light weight: Compared with traditional oil tanks, the corrugated oil tank is more compact in design, and its size and weight are relatively small. Low noise: The corrugated oil tank generates low noise during operation, which meets modern environmental protection requirements.

Applications: In industrial production, corrugated transformer oil tanks can be used to provide reliable power support for large industrial equipment. Its efficient heat dissipation and low noise characteristics can meet the environmental requirements of industrial production.Due to its compact structure, light weight, good heat dissipation performance and other characteristics, it is also suitable for urban power grid transformation projects. In addition, with the development of smart grids, corrugated transformer oil tanks can realize real-time monitoring and remote monitoring of parameters such as oil temperature and pressure through built-in sensors, which can timely warn of faults and ensure the safe operation of the power system.

Technical features

The Transformer oil tank should be welded with high-strength steel plates. Anti-magnetic shielding measures should be taken inside the oil tank to reduce stray losses. The magnetic shield should be well fixed and insulated to avoid overheating or discharge caused by poor contact. All kinds of electrical shields should be well conductive and reliably grounded to avoid suspended discharge or affect the dielectric loss factor value of the winding. The top of the oil tank should have a slope to drain water and lead the accumulated gas to the gas relay. All openings on the top of the oil tank should have raised flanges. Wherever there is a possibility of gas trapping, a vent plug should be installed at its highest point and connected to a public pipeline to collect the gas to the gas relay. The high and medium pressure bushing riser should be equipped with a gas collecting pipe connected to the connecting pipe between the oil tank and the gas relay. The pipeline leading to the gas relay should have a slope of 1.5%. The gas relay should be equipped with rain protection measures, and the gas collection pipe should be led to the ground.
