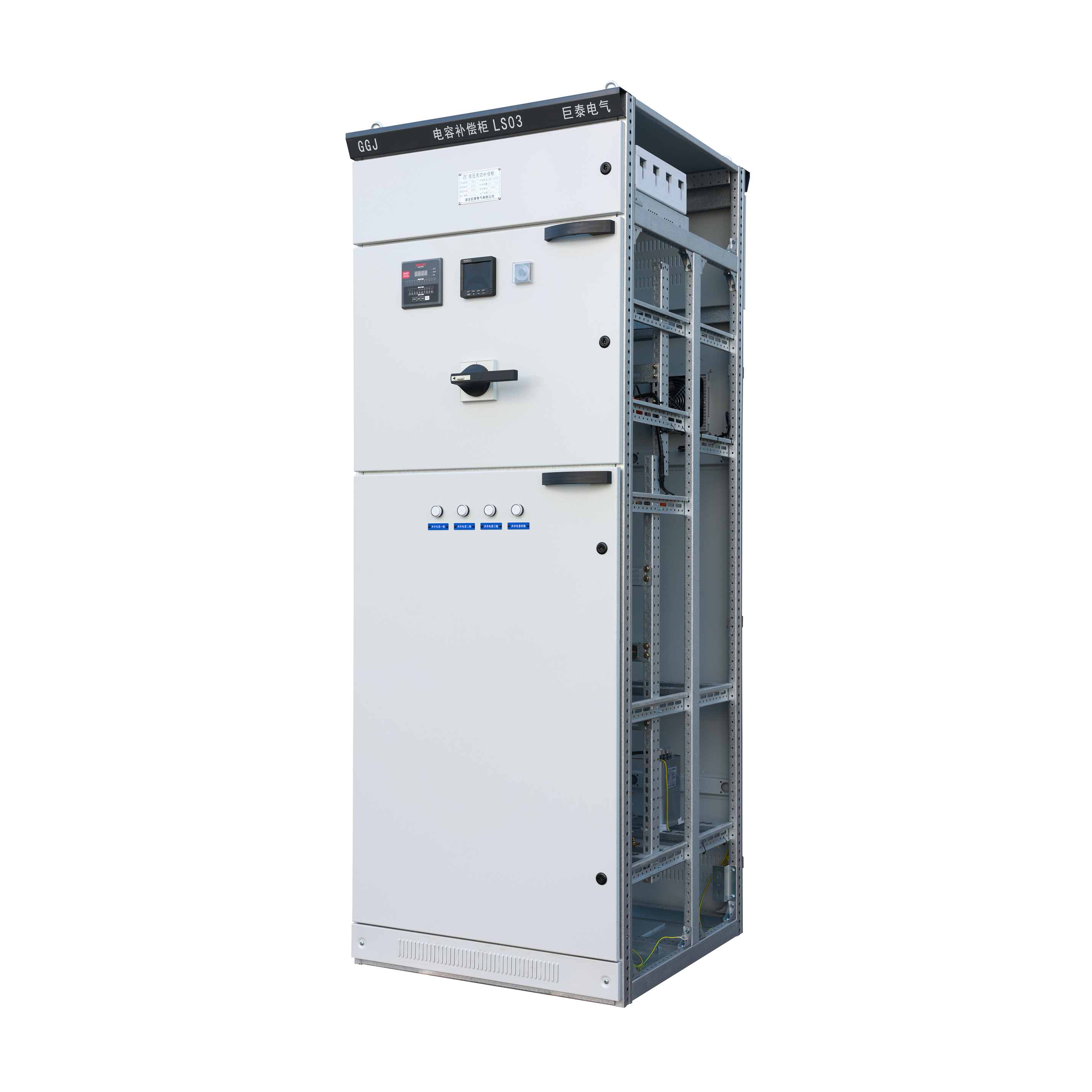

Low-voltage Switchgear Panel Withdrawable type

Product Description:

Introducing the Drawer-type Switchgear, a next-generation low-voltage switchgear designed to meet the demands of modern electrical power distribution. Crafted for environments where high reliability and operational safety are critical, such as in large-scale industrial operations, commercial complexes, and public utility systems, it is optimized for three-phase AC power systems with a frequency of 50/60Hz and is rated for a voltage of 380V and currents up to 4000A.

Key Features:

1. Modular Architecture:

   • The switchgear's modular architecture allows for customization to fit specific electrical configurations, providing flexibility and adaptability in various installation scenarios.

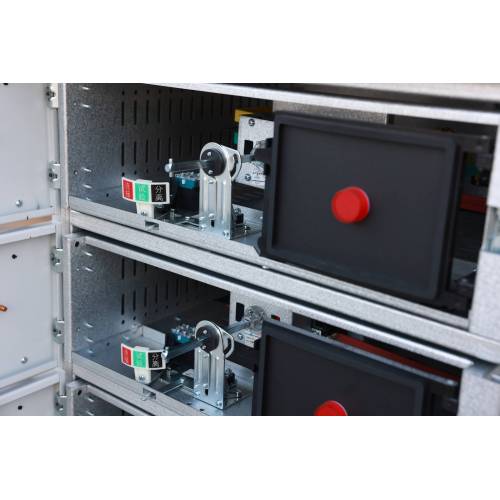

2. Draw-Out Units:

   • The system features draw-out units that enable components to be accessed and serviced without the need for complex disassembly, streamlining maintenance procedures and reducing downtime.

3. Safety and Isolation:

   • The Drawer Switchgear is designed with separate chambers for different functions, ensuring that operational safety is maintained and that each unit can be isolated for safe maintenance.

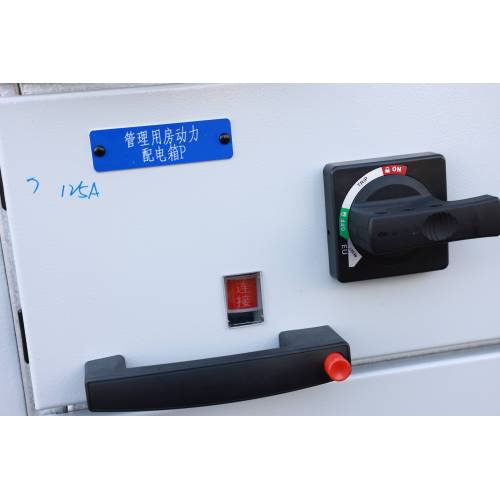

4. Mechanical Interlocking:

   • The system includes mechanical interlocking to prevent accidental operation when the drawer units are in the withdrawn position, adding an extra layer of safety during maintenance.

5. Durable Construction:

   • The switchgear is built with high-grade materials that offer resistance to corrosion and wear, ensuring long-term performance and durability.

6. Efficient Thermal Management:

   • The design of the switchgear includes features that promote efficient heat dissipation, keeping components cool and extending their service life.

The Draw-Out Switchgear is a cutting-edge solution for power distribution, combining safety, efficiency, and adaptability to meet the challenges of modern electrical systems. Its design and functionality make it an ideal choice for applications where high standards of performance and safety are essential.
