GCS Low-Voltage Draw-Out Switchgear: High-Performance Power Distribution Solution

Product Description

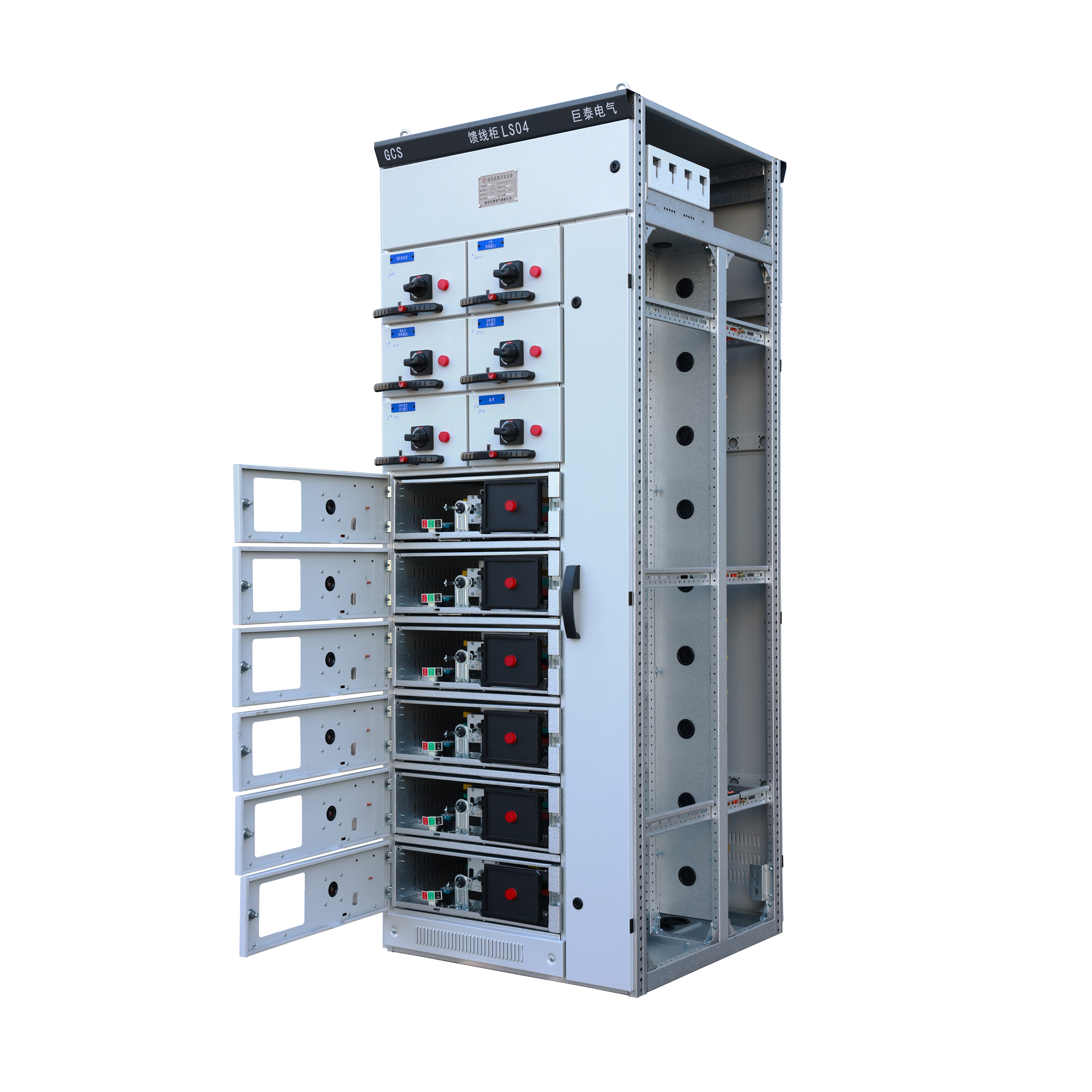

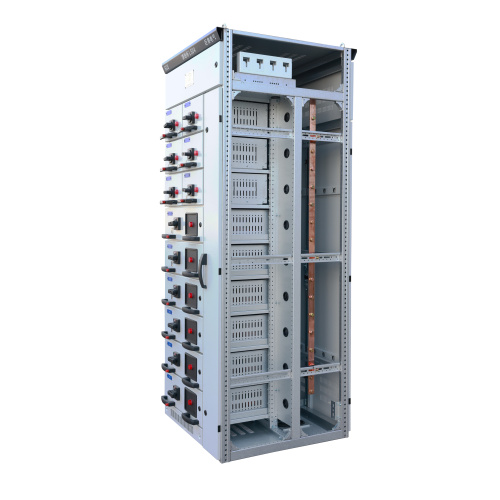

The GCS low-voltage Drawer Type Switch Cabinet is a modern, high-performance electrical switchgear system developed by a collaborative design group in response to the needs of national industry regulators, power users, and design units. Tailored to meet the specific requirements of the domestic market, this switchgear features advanced technical performance metrics that align with the evolving demands of the power sector.

Subjected to a rigorous joint appraisal in July 1996 in Shanghai, the GCS switchgear has since been recognized and valued by manufacturing entities and power-using departments. The Ministry of Electric Power and the Ministry of Mechanical Industry have jointly issued directives (document numbers AnShengYong (1997) No. 01 and JiZhong (1997) No. 01) to promote the application of the GCS low-voltage draw-out switchgear.

It has been widely adopted across various sectors, including power generation, oil, chemical, metallurgical, textile, communication, and construction for their distribution systems. This Drawer-type Switchgear is particularly suitable for large-scale power plants, communication hubs, and highly automated modern enterprises that require computer control, serving as a power distribution device in three-phase AC systems with a frequency of 50(60)Hz, a rated working voltage of 380V(660V), and a rated current of 4000A or less, for power distribution, centralized motor control, and reactive power compensation.

Application Fields

The GCS low-voltage Drawer Switchgear is extensively utilized in outdoor environments such as 6-10kV ring networks and end-user facilities, including:

• Industrial parks
• Residential areas
• Commercial centers
• Parks
• Stations
• Airports
• Ports
• Oil fields
• Temporary facilities

Technical Features

• Enhanced Thermal Capacity: Significantly reduces the additional temperature rise that affects connectors, cable heads, and partition plates due to thermal rise in transfer components.
• Clear Functional Separation: Ensures that a fault in one unit does not impact the operation of others, confining faults to the smallest possible area.
• Excellent Thermal Stability: Capable of withstanding short-circuit currents of 80/176kA, providing reliability under high-power conditions.
• High Circuit Capacity: The MCC cabinet can accommodate up to 22 circuits per cabinet, catering to the needs of large single-unit capacity power plants and automated electric gate (machine) groups in the petrochemical industry.
• Ample Secondary Connectors: The drawer unit is equipped with a sufficient number of secondary connectors (32 pairs for units of 1 and above, 20 pairs for 1/2 units), meeting the interface requirements for computer interfaces and automatic control circuits.

Product Advantages

1. Superior Thermal Stability: Ensures reliable operation under varying thermal conditions.
2. Clear and Distinct Separation: Enhances safety by preventing faults from affecting multiple units.
