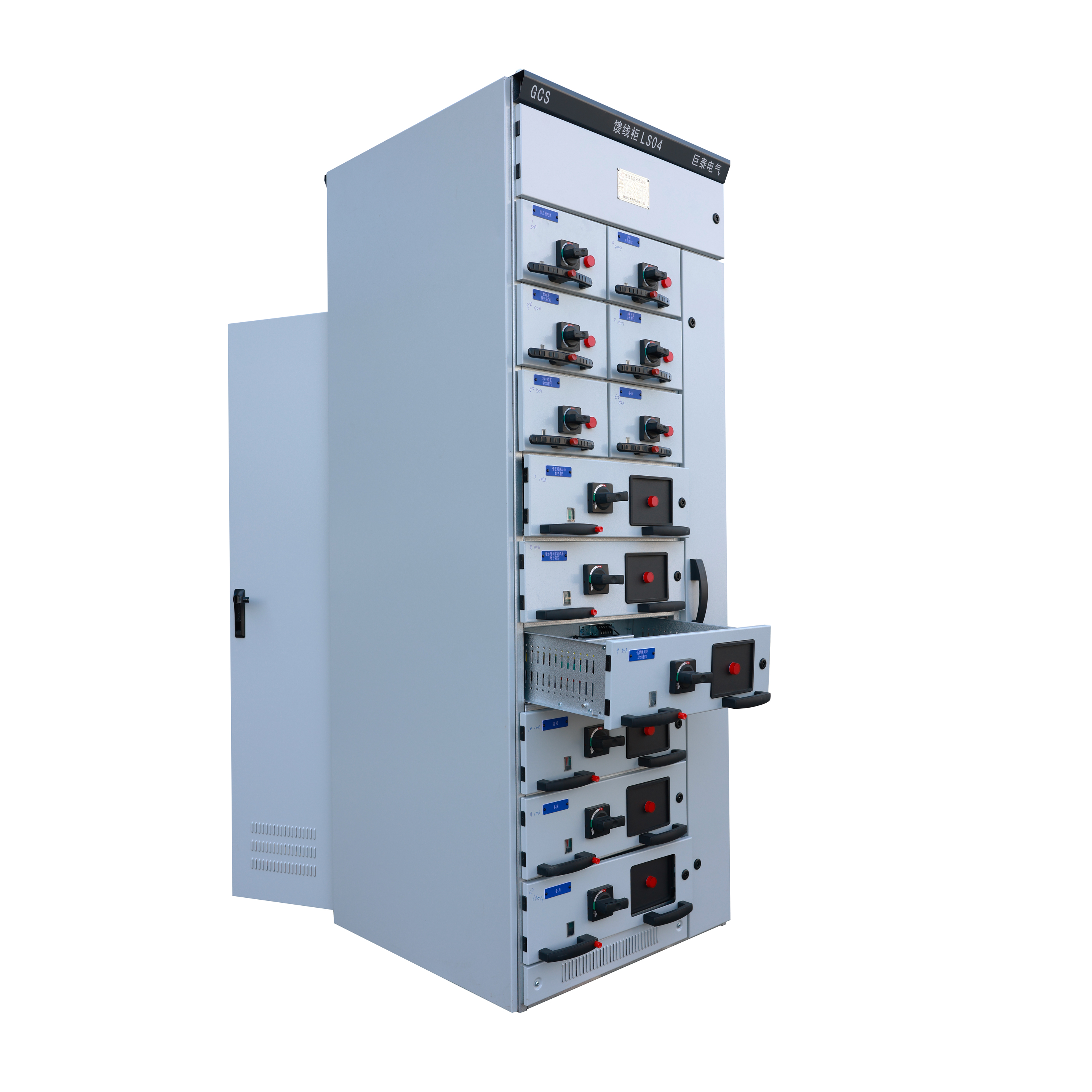

GCS Drawer Type Switch Cabinet: Pioneering Performance for Power Distribution

Product Description

The GCS Drawer-type Switchgearmodel low-voltage Removable Switchgear is a next-generation solution designed by a collaborative team in line with directives from industry regulatory bodies, extensive power users, and design institutions. It is tailored to align with domestic market conditions and boasts superior technical performance specifications that meet the developmental demands of the electricity market. This switchgear was comprehensively evaluated and has since been highly regarded and affirmed by both manufacturing entities and power-consuming sectors. Endorsed by the Ministry of Electric Power and the Ministry of Mechanical Industry, the GCS low-voltage Drawer Switchgear has been widely embraced by various user communities, including power generation facilities, oil, chemical, metallurgical, textile, communication, and construction industries for their distribution systems. It is particularly suitable for large-scale power plants, communication hubs, and modern enterprises with high automation levels that require computer control, functioning as a distribution device in three-phase AC systems with a frequency of 50(60)Hz, a rated working voltage of 380V(660V), and a rated current of 4000A or less, for power distribution, centralized motor control, and reactive power compensation.

Application Fields

The GCS low-voltage removable switchgear is extensively applied in outdoor settings such as 6-10kV ring networks and end-user facilities, including industrial parks, residential communities, commercial centers, parks, stations, airports, ports, oil fields, and temporary facilities.

Technical Features

• Enhanced Thermal Capacity: The thermal capacity of the transfer components has been significantly enhanced, reducing the additional temperature rise that affects connectors, cable heads, and partition plates due to the thermal rise of the transfer components.
• Clear Functional Separation: There is a clear and reliable separation between functional units and compartments, ensuring that a malfunction in one unit does not impact the operation of others, thus confining faults to the smallest possible area.
• Excellent Thermal Stability: Capable of withstanding the impact of short-circuit currents of 80/176kA.
• High Circuit Capacity: The MCC cabinet can accommodate up to 22 circuits per cabinet, considering the needs of large single-unit capacity power plants and automated electric gate (machine) groups in the petrochemical industry.

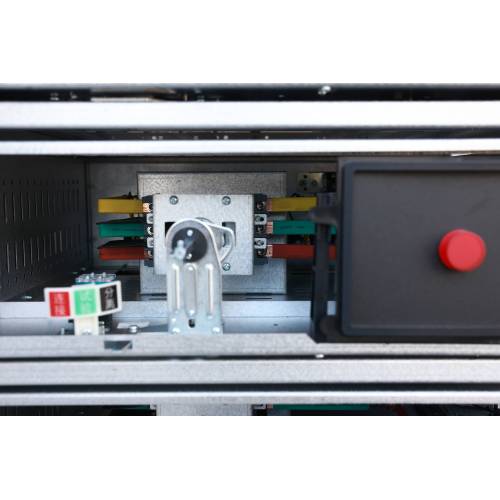

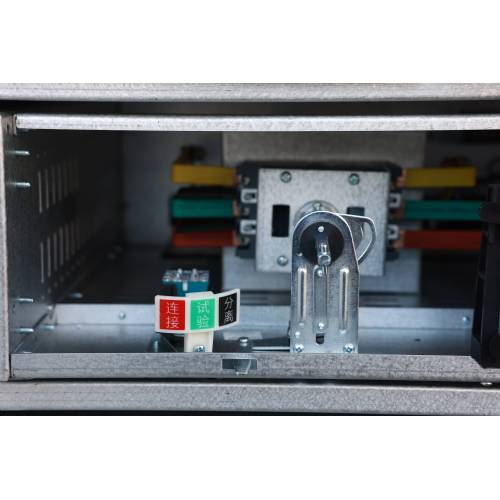

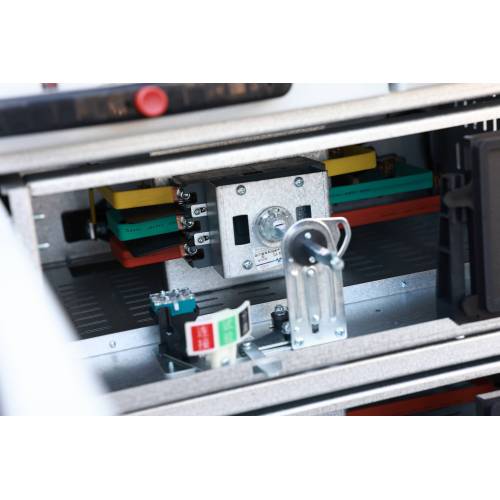

• Ample Secondary Connectors: The Drawer-type Switchgear unit is equipped with an ample number of secondary connectors (32 pairs for units of 1 and above, 20 pairs for 1/2 units), meeting the requirements for the number of interface points for computer interfaces and automatic control circuits.

Product Advantages

1. Exceptional Thermal Stability: Offers outstanding thermal stability for reliable performance.
2. Clear and Distinct Separation: Ensures clear distinction between functional units for enhanced safety and fault confinement.
