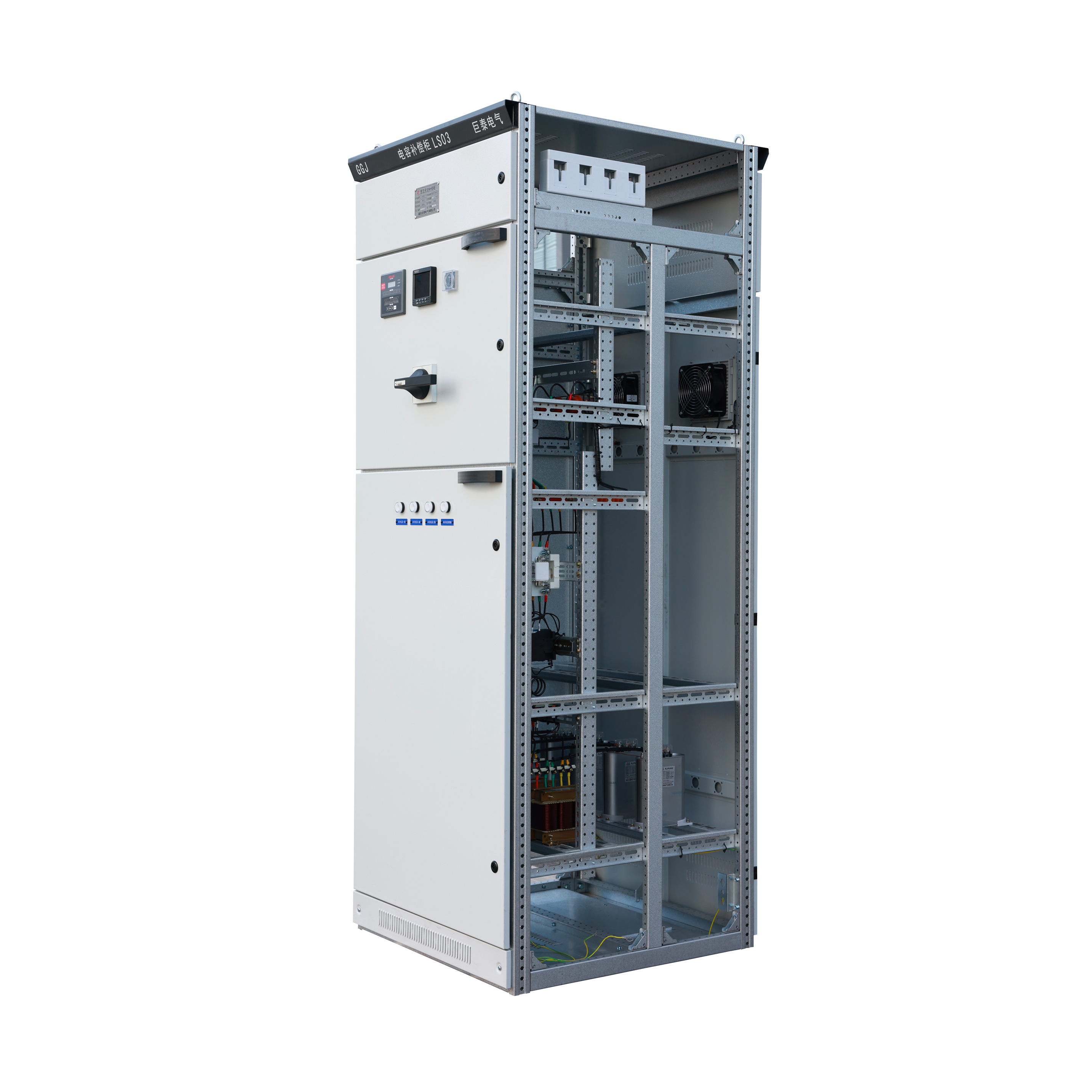

GGJ Modular Low-voltage Withdrawable Switchgear

Product Description:

The Drawer-type Switchgear is a sophisticated solution for low-voltage power distribution, catering to a diverse range of applications such as power stations, distribution facilities, industrial and mining enterprises, and the power distribution centers of high-rise buildings. It serves both as a Power Distribution Center (PC) and a Motor Control Center (MCC). Designed for AC systems with frequencies of 50-60Hz, it operates with a Rated operating voltage up to 660V and a Rated current of 4000A or less, making it well-suited for distribution, motor control, and power factor correction in low-voltage switchgear applications.

Application Scope:

This Drawer Switchgear excels in outdoor applications within 6-10kV ring networks and for end-user facilities. It is commonly utilized in various settings, including industrial zones, residential communities, commercial areas, parks, stations, airports, ports, oil fields, and temporary installations.

Technical Attributes:

1. Space-Efficient Design: The switchgear features a compact design that concentrates functional units in a small space, optimizing user investment.
2. Universal Structure and Flexibility: With a modular grid of 25mm, the switchgear offers a universal structure that allows for customization of various draw-out unit configurations to meet specific system design requirements.
3. Insulation Protection: Superior insulation protection for vertical busbars and outgoing lines ensures the safety and reliability of rear cabinet maintenance.
4. Mechanical Locking Mechanism: A distinctive mechanical locking mechanism provides secure operation, test, extraction, and isolation positions, enhancing safety and reliability.
5. Drawer Glide Mechanism: The drawer's glide mechanism, equipped with ball bearings, improves the interchangeability of drawers of the same specification.
6. Design Flexibility: The design offers a high level of flexibility, permitting the combination of drawer-type and fixed partition-type configurations as needed.
7. Safety Protection System: An integrated reliable safety protection system with live doors ensures the safety of front-side maintenance.
8. Pole Configuration Options: The system offers options to select between three-pole and four-pole outgoing lines based on specific needs.

Product Benefits:

1. Space-Saving Construction: The construction minimizes the footprint while maximizing functionality.
2. Highly Adaptable Assembly: The universal structure and flexibility allow for a wide range of assembly configurations.
3. Advanced Insulation: Advanced insulation of vertical busbars and outgoing lines ensures safe maintenance practices.
4. Secure Locking: The mechanical locking mechanism guarantees secure operation and maintenance.
5. Versatile Design: The versatile design accommodates a variety of configurations to suit different application needs.
6. Safe Maintenance: The safety protection system with live doors ensures the safety of front-side maintenance procedures.

The Draw-Out Switchgear is an ideal choice for modern electrical distribution needs, combining advanced technology with robust safety features to ensure reliable performance across various applications.
