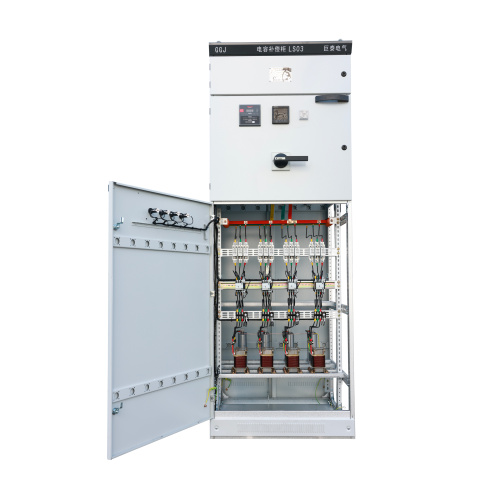

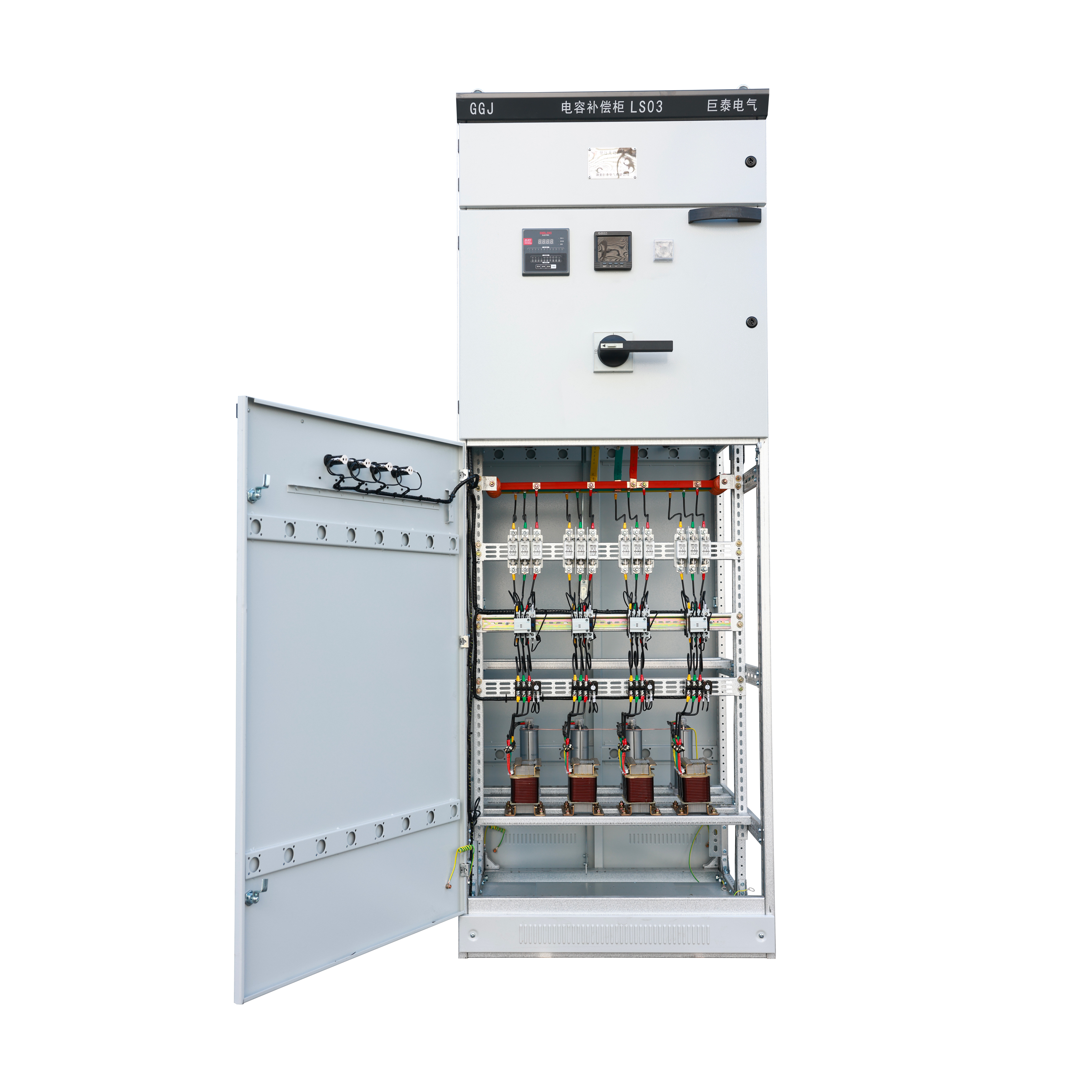

GGJ Compact Structure Draw-out Switchgear

Product Description:

The Drawer-type Switchgear is a contemporary low-voltage switchgear system that offers advanced functionality and safety in power distribution. Designed for applications where reliability and ease of maintenance are paramount, such as in industrial processes, commercial buildings, and utility networks, it operates effectively within three-phase AC systems with a frequency of 50/60Hz and a rated voltage of 380V, managing currents up to 4000A.

Key Features:

1. Advanced Modularity:

   • The system's modular construction allows for a wide range of configurations to meet specific project requirements. Its design facilitates the integration of various components, such as protection devices and control gear, in a single, cohesive unit.

2. Draw-Out Function:

   • The switchgear's draw-out function provides ease of access to the functional units, enabling swift maintenance and reducing the risk of electrical incidents during servicing.

3. Safety Compartmentalization:

   • The system is compartmentalized into separate chambers for functional units, busbars, and cables, ensuring that each component operates independently and is safely isolated.

4. Interlocking Mechanisms:

   • Integrated mechanical interlocking mechanisms prevent the operation of the switchgear when the drawers are in the withdrawn position, ensuring that maintenance can be performed safely.

5. Durable Finish:

   • The Drawer Switchgear features a durable finish that resists corrosion and other environmental factors, prolonging the life of the equipment and reducing the need for frequent replacements.

6. Flexibility in Installation:

   • With a variety of drawer configurations and sizes available, the switchgear can be tailored to fit the unique space and capacity requirements of any electrical setup.

The Draw-Out Switchgear is a versatile and robust solution for power distribution, combining safety, efficiency, and adaptability to meet the challenges of modern electrical systems. Its design and functionality make it a preferred choice for applications where high standards of performance and safety are essential.
