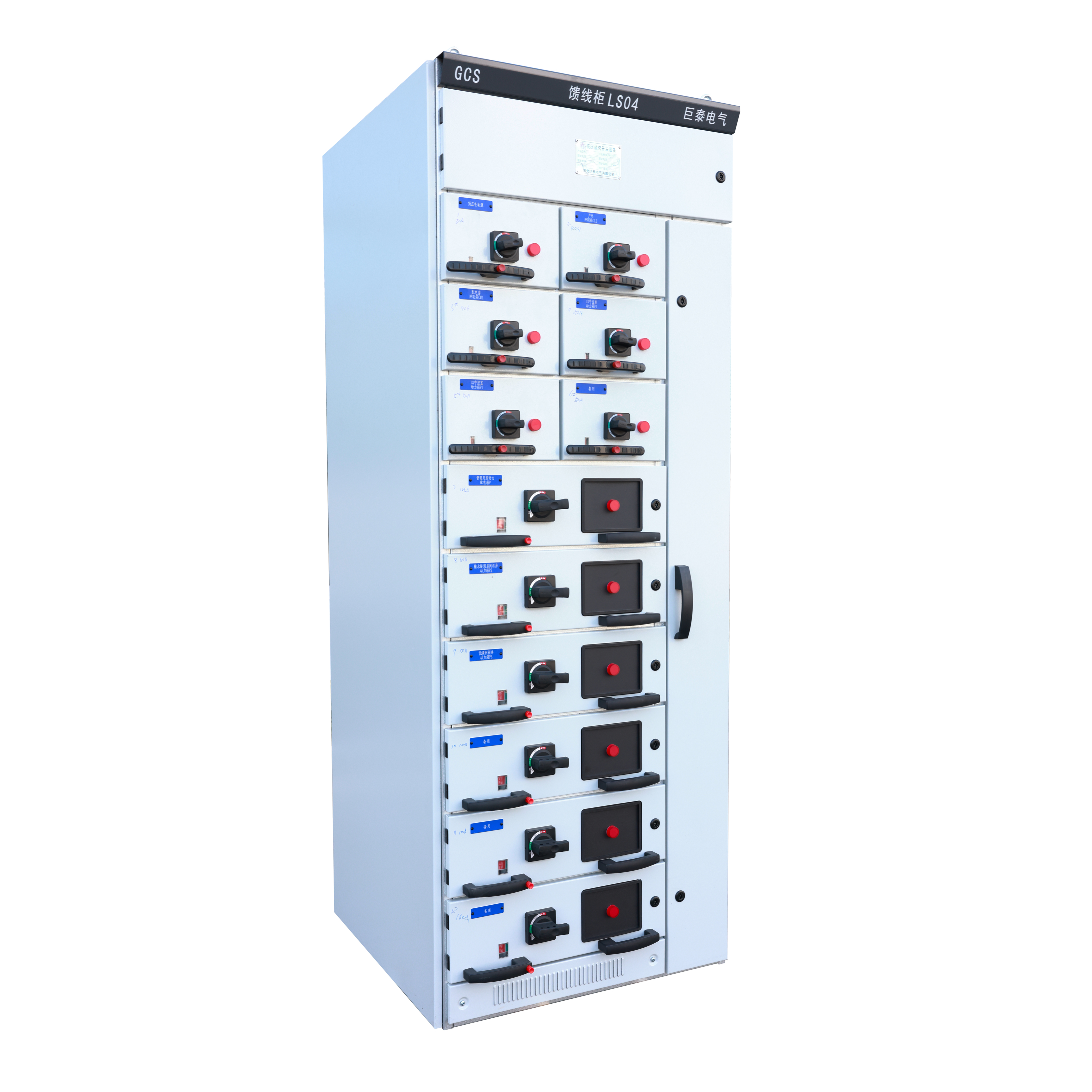

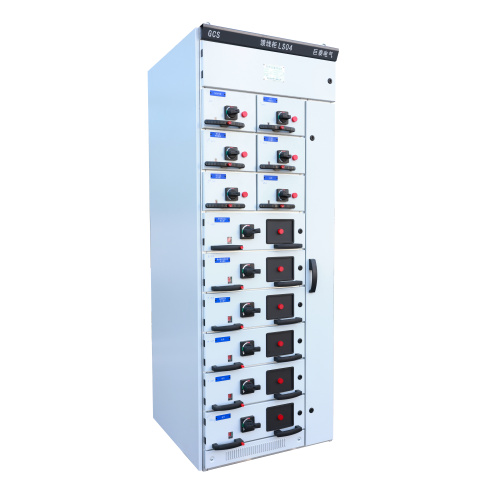

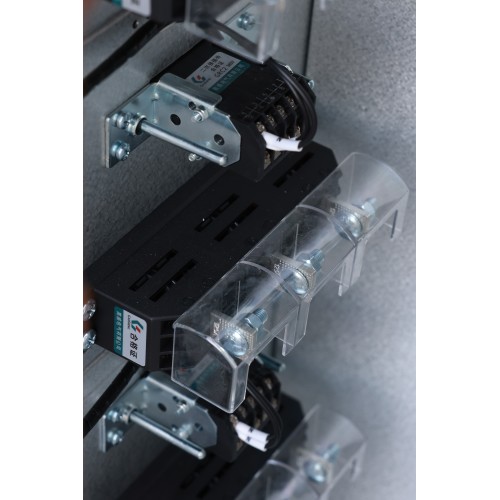

GCS Type Low-voltage Withdrawable Switch Cabinet

GCS Type Low-voltage Withdrawable Switch Cabinet

Get Latest Price

Contact Now

Brand: Jutai

Description

Product Description

Product Description:

The GCS Drawer-type Switchgear is a contemporary low-voltage switchgear system engineered by a collaborative design team in accordance with the directives from industry governing bodies, a wide array of electrical power consumers, and design firms. It is designed to meet the specific conditions and demands of our country, offering high technical performance standards that are well-suited to the dynamic growth of the electricity market. This Drawer Switchgear successfully underwent a joint evaluation in July 1996 in Shanghai and has since been acknowledged and affirmed by both manufacturing entities and electrical power user departments. The Ministry of Electric Power and the Ministry of Mechanical Industry have jointly promulgated notices (document numbers AnShengYong (1997) No. 01 and JiZhong (1997) No. 01) to endorse the widespread application of the GCS low- voltage withdrawable switchgear. It has been broadly embraced across a variety of industries, including power generation, oil, chemical, metallurgical, textile, communication, and construction for their distribution systems. It is especially appropriate for large-scale power plants, communication centers, and modern enterprises with advanced automation that require computer control, functioning as a power distribution device in three-phase AC systems with a frequency of 50(60)Hz, a rated working voltage of 380V(660V ), and a rated current of 4000A or less, for power distribution, centralized motor control, and reactive power compensation. Application Fields: The GCS low-voltage withdrawable drawer-type switchgear is extensively utilized in outdoor environments such as 6-10kV ring networks and end-user facilities, including industrial parks, residential areas, commercial centers, parks, stations, airports, ports, oil fields, and temporary facilities.

Technical Features:

- The thermal capacity of the transfer components has been enhanced, significantly reducing the additional temperature rise that affects the connectors, cable heads, and partition plates due to the thermal rise of the transfer components.

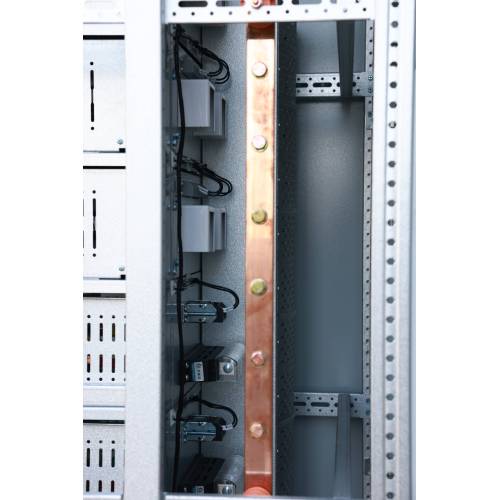

- Clear and reliable separation between functional units and compartments ensures that a fault in one unit does not impact the operation of others, confining faults to the smallest possible area.

-It boasts excellent thermal stability, capable of withstanding the impact of short-circuit currents of 80/176kA.

- The MCC Drawer Type Switch Cabinet can accommodate up to 22 circuits per cabinet, taking into account the needs of large single-unit capacity power plants and automated electric gate (machine) groups in the petrochemical industry.

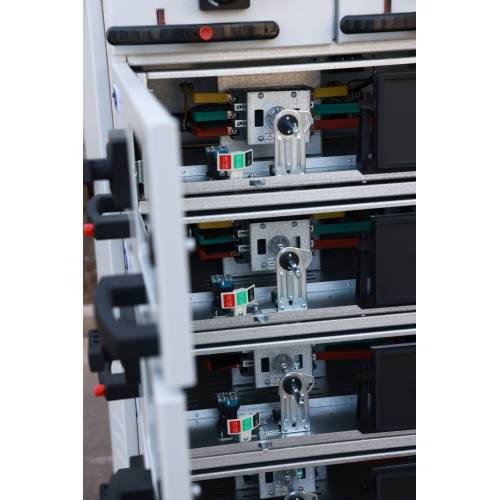

- The drawer unit is equipped with an ample number of secondary connectors (32 pairs for units of 1 and above, 20 pairs for 1/2 units), meeting the requirements for the number of interface points for computer interfaces and automatic control circuits.
