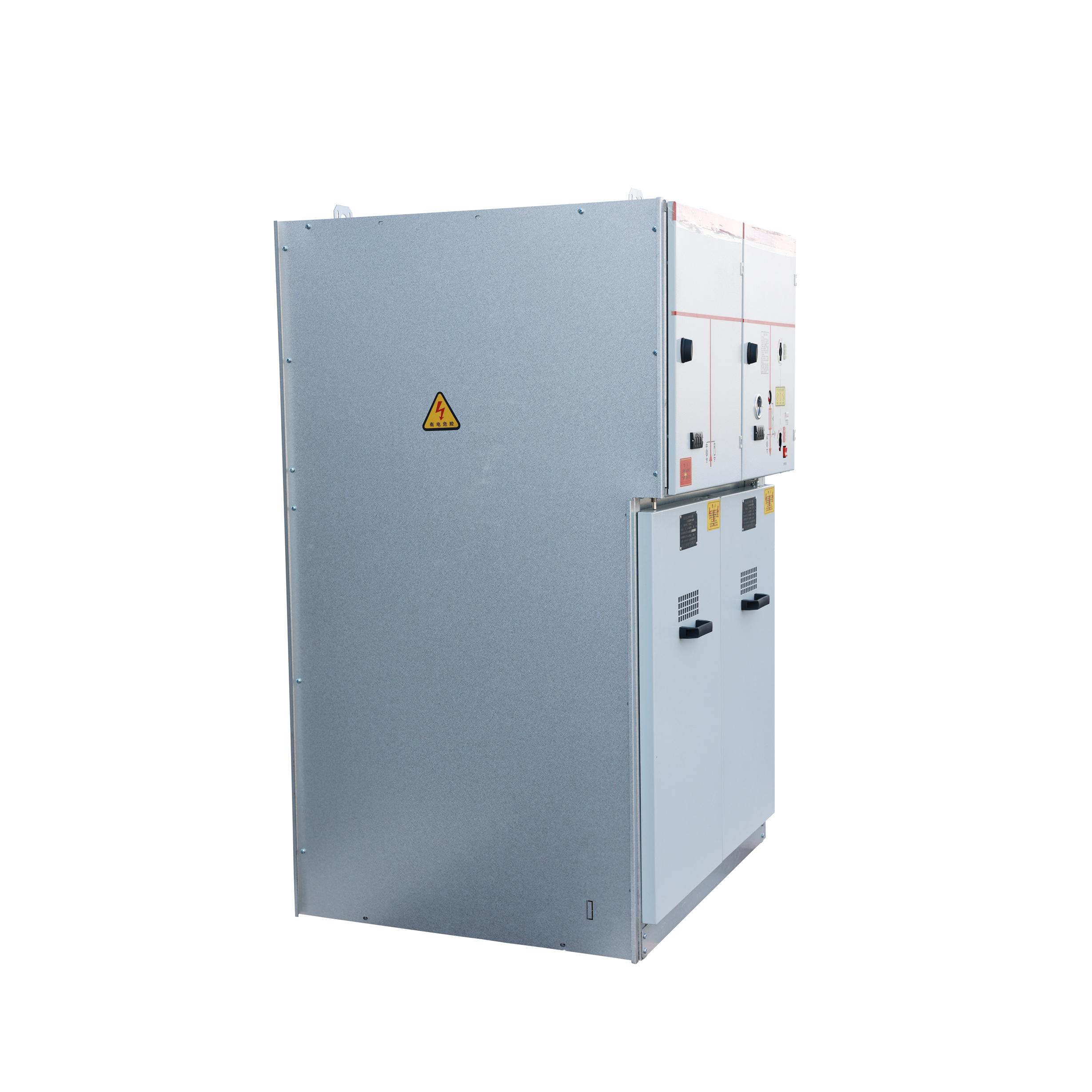

HXGN-12 12KV Box-Type Metal Clad Electrical Switchgear

HXGN-12 12KV Box-Type Metal Clad Electrical Switchgear

Get Latest Price

Contact Now

Brand: Jutai

Description

Product Description

HXGN-12 series box-type fixed ring network high-voltage switchgear is suitable for indoor three-phase AC 50Hz, rated voltage 3~12KV ring network power supply and user substation for receiving, controlling and distributing electric energy.

Technical Highlights:

This cabinet fully meets the "five protection" requirements of the high-voltage switchgear of the power system. It is widely used in distribution systems such as industrial and mining enterprises, residential areas, high-rise buildings and school parks to distribute load current, and can close the rated short-circuit current. It can also be used to break the no-load current of the transformer, the current of overhead lines or cable lines at a certain distance. The ring network cabinet with fuse can cut off the short-circuit current as a protective switch. It is also suitable for installation in box-type substations.

It is widely used in power distribution systems such as power plants, small and medium-sized generators, substations, high-rise buildings, industrial and mining enterprises, subways and electrified railways to control, protect and detect power supply systems and loads.

It is particularly suitable for underground, plateau, frozen soil, coastal, humid environments, densely populated areas and places with expensive building areas;

Innovative Features:

Metal-Enclosed Structure: Provides superior protection against environmental factors and ensures personnel safety.
Compartmentalization: Houses separate chambers for breakers, busbars, cables, and control gear, enhancing safety and reducing the risk of cross-contamination.
Pressure Relief Channels: Equipped with a pressure relief system to manage internal pressure in the event of an internal fault.
Interlocking Mechanisms: Implements mechanical interlocks to prevent unauthorized operations and ensure safe switching procedures.
Circuit Breaker Compatibility: Compatible with a variety of vacuum circuit breakers, offering flexibility in circuit protection.
Isolation Switches: Incorporates high-quality isolation switches for reliable operation and maintenance.
Efficient Busbar System: Features a top-mounted busbar system for efficient power distribution.
Internal Illumination: Facilitates easier maintenance and inspection with built-in lighting.

Product advantages:

1. Reliable performance;

2. Safe and convenient to use;

3. The entire cabinet is oil-free and non-toxic;

4. Long service life;

5. Good scalability;

6. Compact structure;

Versatile Applications:

Power Plants: For efficient power distribution and control.
Substations: To manage the flow of electricity from power plants to local grids.
Industrial Facilities: To ensure reliable power supply in manufacturing and processing plants.
Mining Operations: For safe and efficient power management in harsh environments.
Commercial Buildings: To provide a stable power supply for commercial and office spaces.

Application areas:

Widely used in power distribution systems such as power plants and substations, energy companies such as coal, petroleum, and chemicals, transportation companies such as aviation, railways, and ports, high-rise buildings, stadiums, and other construction facilities, industrial and mining companies, and large-scale manufacturing industries.
