XGN2-12 Fixed Type Metal-Clad Switchgear

XGN2-12 Fixed Type Metal-Clad Switchgear

Get Latest Price

Contact Now

Brand: Jutai

Description

Product Description

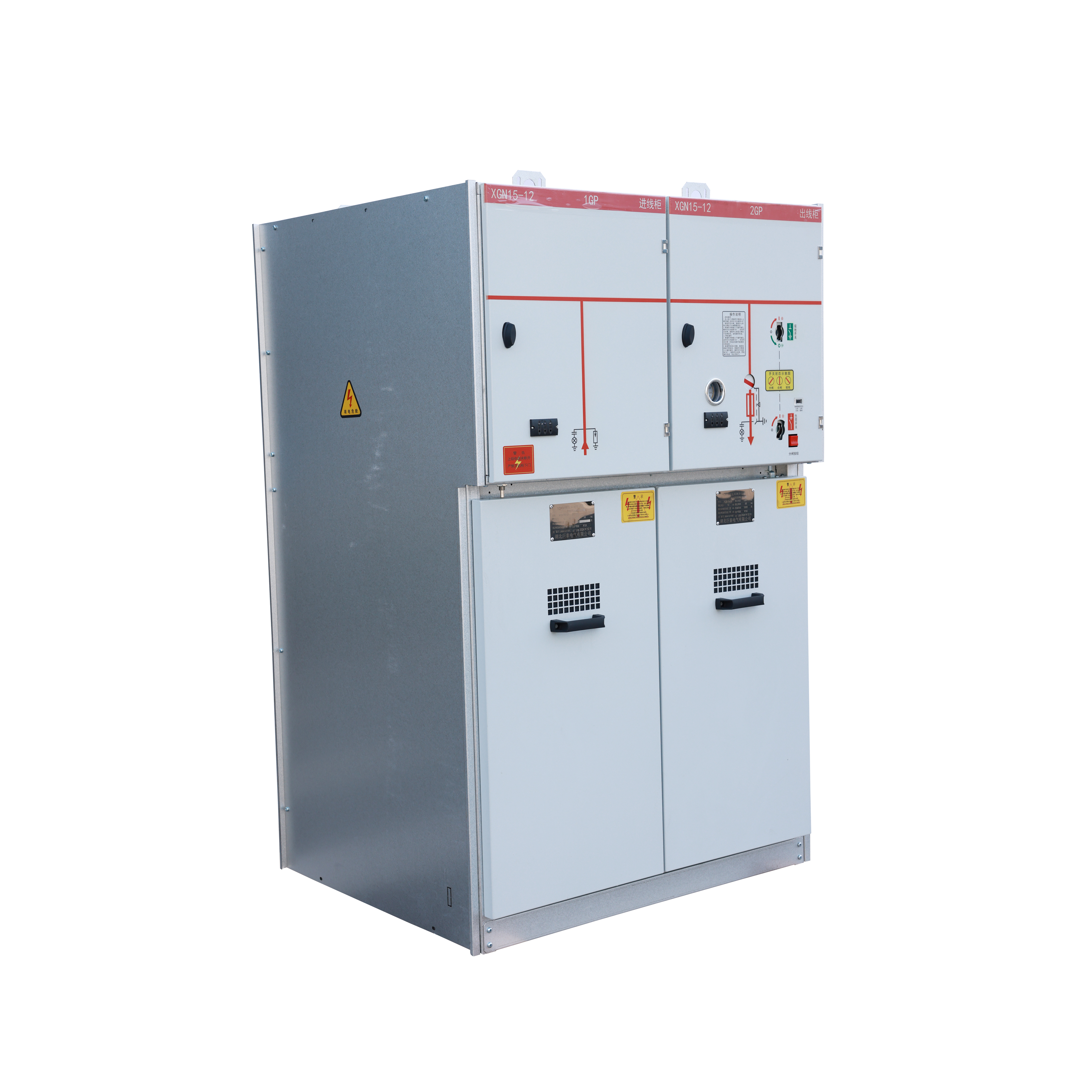

XGN2-12 Fixed Type Metal-Clad Switchgear

Introduction: XGN2-12 box-type fixed AC Metal-Enclosed Switchgear (referred to as switchgear) is used for power with rated voltage of 3.6~12kV, three-phase AC 50Hz, rated circuit 630~3150A. It is used to receive and distribute electric energy in the system. It is especially suitable for occasions with frequent operations. Its busbar system is single busbar, which can be derived into single busbar with bypass and double busbar system.

Key Technical Attributes:

The XGN2-12 switch cabinet is a metal-enclosed box-type structure. The cabinet frame is welded by angle steel. The cabinet is divided into circuit breaker room, busbar room, cable room, relay room, etc., and the rooms are separated by steel plates.

1. The circuit breaker room is outside the front lower part of the cabinet. The rotation of the circuit breaker is connected by a pull rod and an operating mechanism. The upper wiring terminal of the circuit breaker is connected to the upper disconnector, and the lower wiring terminal of the circuit breaker is connected to the current transformer. The current transformer is connected to the busbar of the lower disconnector. The circuit breaker room is also equipped with a pressure release channel. If an internal arc occurs, the gas can release the pressure through the exhaust channel.

2. The busbar room is in the upper back of the cabinet. In order to reduce the height of the cabinet, the busbars are arranged in a product shape and supported by porcelain insulators with a bending strength of 7350N. The busbars are connected to the upper disconnector busbar, and adjacent bright busbar rooms can be isolated.

3. The cable room is at the rear of the lower part of the cabinet. The cable room supports insulators and can be equipped with voltage monitoring devices. The cables are fixed on the brackets. When the main connection is a communication scheme, this room is a small communication room. The relay room is at the front of the upper part of the cabinet. The indoor mounting plate can be installed with relays, etc. There are terminal row brackets in the room. Secondary components such as indicating instruments and signal components can be installed on the door. Secondary busbars can also be arranged on the top.

Operational Environment:

Temperature Range: Designed to operate in ambient temperatures up to 40°C.
Altitude: Suitable for use up to 3000m above sea level.
Atmospheric Conditions: Intended for use in clean, non-corrosive environments.
Humidity: Capable of operating in high humidity conditions without performance degradation.

Storage and Transportation:

Storage: Should be kept in its original packaging to maintain its integrity.
Transportation: Requires protection from direct sunlight, rain, and extreme temperatures during transit.

Applications:

Power Generation Facilities: For efficient power distribution and control.
Transformer Stations: To manage the flow of electricity from power plants to local grids.
Industrial and Mining Enterprises: To ensure reliable power supply in harsh and demanding environments.
Commercial Buildings: To provide a stable power supply for commercial and office spaces.

Why Choose XGN2-12:

Standards Compliance: Adheres to international safety and performance standards.
Versatility: Adaptable to a wide range of configurations and system requirements.
Durability: Built to withstand the test of time with a focus on long-term reliability.
Maintenance Friendly: Designed for ease of maintenance to extend the service life.

The XGN2-12 Fixed Metal-Enclosed Switchgear is a testament to the commitment to safety, reliability, and performance in medium-voltage power distribution. It is a product that stands ready to serve the energy management needs of a diverse range of industries.
