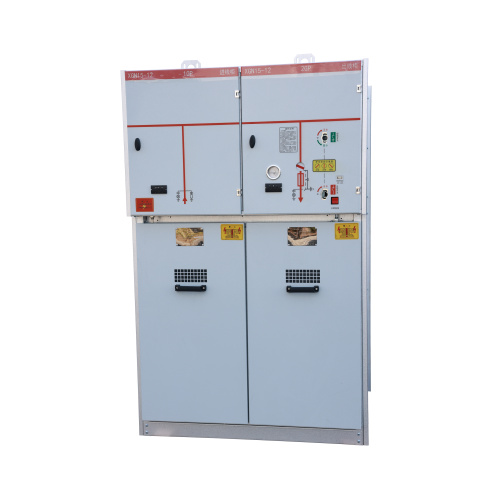

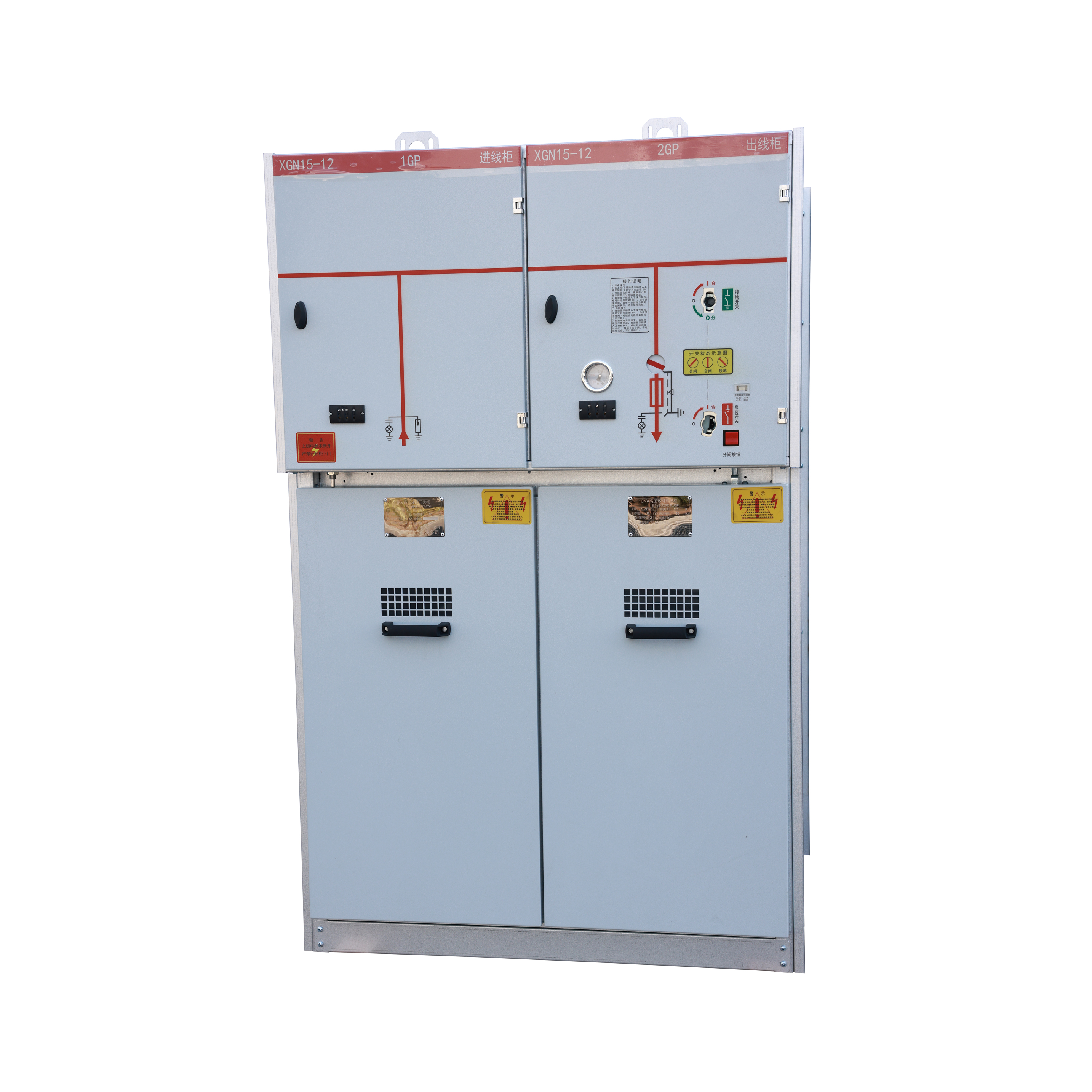

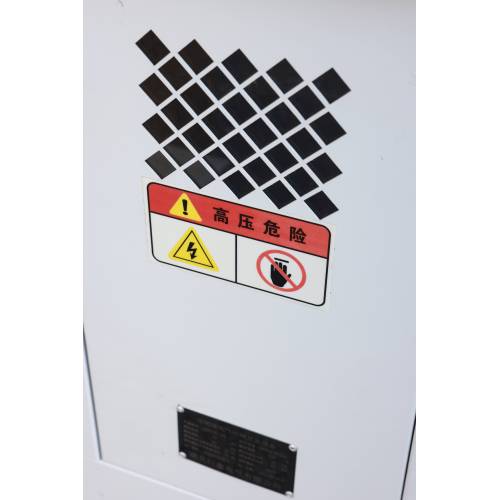

XGN2-12 Box-Type Fixed Metal-Enclosed Switchgear

Product Details: XGN2-12 Box-Type Fixed Metal Enclosed Switchgear

Overview: The XGN2-12 Box-Type Fixed Metal Closed Switchgear is a medium-voltage switchgear designed for primary distribution in three-phase AC systems with a rated voltage of 3.6~12kV and a frequency of 50Hz. It is suitable for receiving and distributing electric energy, as well as for control, monitoring, and protection of the power system.

Technical Specifications:

• Rated Voltage: 3.6kV, 7.2kV, 12kV
• Rated Insulation Level: 1min.P.F. withstand voltage (phases to ground/gaps) 42/48kV; Lightning impulse withstand voltage (phases to ground/gaps) 75/85kV
• Rated Frequency: 50Hz/60Hz
• Rated Current: 630A, 1250A, 1600A, 2000A, 2500A, 3150A
• Rated Short-Time Withstand Current (4s): 16kA, 20kA, 25kA, 31.5kA, 40kA, 50kA
• Rated Peak Withstand Current: 40kA, 50kA, 63kA, 80kA, 100kA, 125kA
• Protection Class: IP2X
• Outline Dimension (Width×Depth×Height): 900(1100)×1000×2300mm
• Weight: 800-1100kg

Features:

• The switchgear is designed with a metal-enclosed, box-type structure, providing safety and reliability.

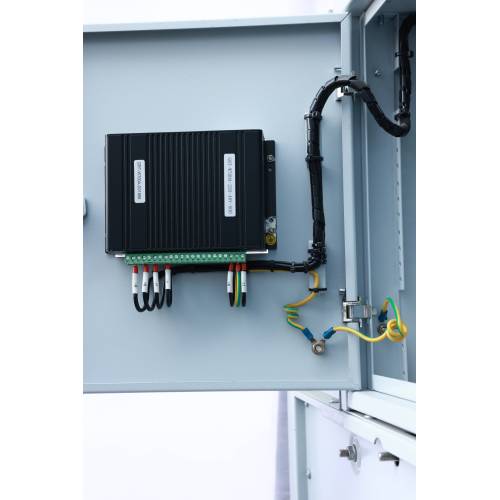

• It is divided into compartments such as the breaker chamber, busbar chamber, cable chamber, and relay chamber, each separated by steel plates,
• The switchgear is equipped with a pressure relief aisle, internal lighting, and top busbars.

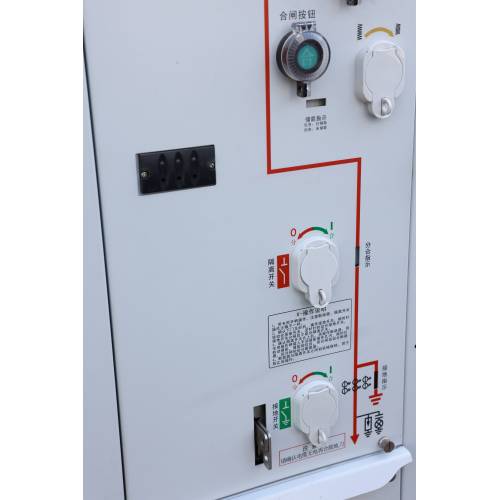

• It features a mature "mechanical five-prevention" system to prevent Misoperation.

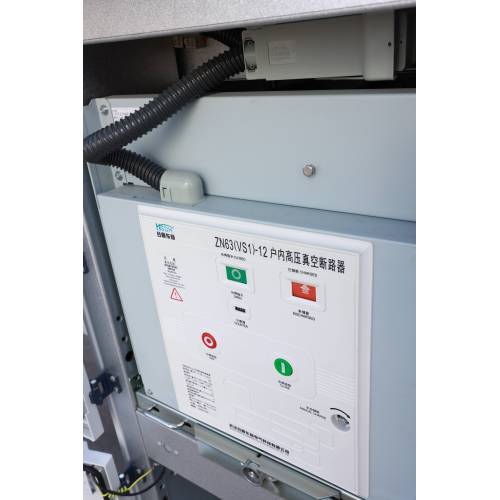

• The main circuit breaker options include ZN28A-12, ZN28-12, ZN63A-12 vacuum circuit breakers, with the possibility of other models based on requirements.
• Isolation switches include GN30-10 rotary and GN22-10 high-current switches.
• The switchgear is suitable for single bus, single-bus sectionalizing systems, and can be adapted for double bus systems.
• It meets international standards such as IEC62271-200, IEC694, GB3906, DL404, DIN.VDE0670, and has a reliable prevention function against false-operation.

Operating Conditions:

• Ambient Air Temperature: Less than or equal to 40°C; Less than or equal to 35°C on average over 24 hours; Greater than or equal to -5°C (-25°C on request)
• Altitude: Less than or equal to 3000m
• Atmosphere: No dust, smoke, or corrosive, or inflammable gas and vapor, or salt; Earthquake intensity: Magnitude 8
• Humidity: Average relative humidity over a 24-hour period ≤ 95%; Average relative humidity over a 1-month period ≤ 90%; Average vapor pressure over a 24-hour period ≤ 2.2 kPa; Average vapor pressure over a 1-month period ≤ 1.8 kPa

Storage Conditions:

• Equipment should be stored in its original packaging, in dry conditions, and sheltered from the sun and rain at a temperature ranging from -25°C up to +55°C to retain all functional qualities.

Applications: The XGN2-12 Metal-Enclosed Switchgear is ideal for power plants, transformer stations, industrial, and mining enterprises where reliable and safe power distribution is required.
