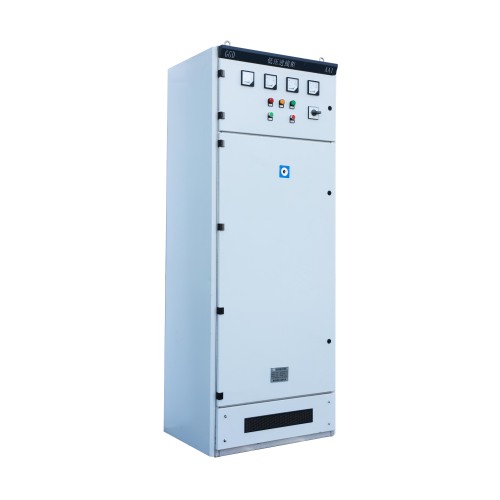

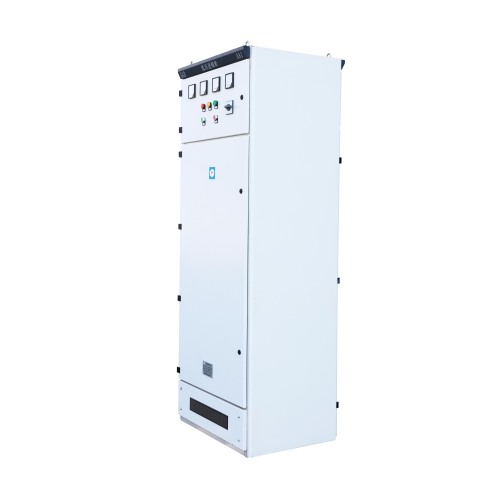

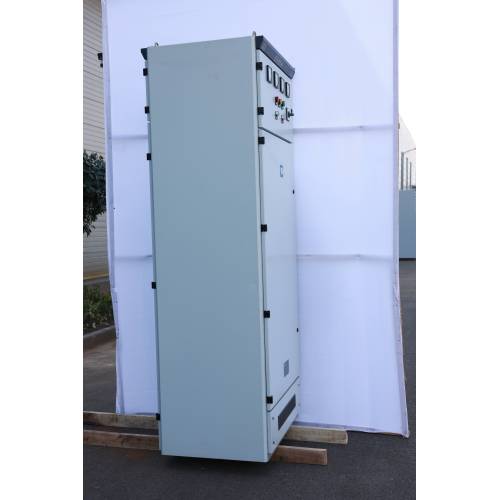

GGD Fixed Switchgear Cabinet: Synergizing Safety, Economy, and Reliability

Product Description

The GGD Fixed-Type electric switchgear is a cutting-edge low-voltage distribution assembly meticulously designed to align with the stringent requirements of energy authorities, power users, and design departments. With a priority on safety, economy, and reliability, this switchgear is built to manage high breaking capacities with exceptional dynamic and thermal stability. It boasts a flexible electrical design, convenient modular combination, and a high level of protection. Customized for AC 50Hz distribution systems with a rated voltage of 380V and capable of handling currents up to 3150A, it is perfectly suited for power distribution in industrial, commercial, and public facilities.

Application Areas

The GGD Fixed Switchgear Cabinet enjoys broad applicability across various sectors, including:

• Power generation and distribution centers
• Energy-intensive enterprises in coal, oil, and chemical industries
• Transportation hubs such as aviation, railways, and port facilities
• High-rise buildings, sports complexes, and large-scale infrastructure projects
• Heavy industrial and manufacturing settings

Technical Features

1. Fully Enclosed Structure: Equipped with TMY hard copper busbars, the cabinet features a dedicated horizontal busbar frame at the top and vertical busbars secured with clamps for enhanced safety and stability.
2. Comprehensive Protective Circuitry: Includes a dedicated PE line and conductive metal components, with the N busbar strategically located at the front of the cabinet for easy access and maintenance.
3. Durable Main Frame: Constructed from 8MF steel, the cold-formed and assembled main frame has modular holes at 20mm intervals, ensuring adaptability. It is finished with a powder coating for enhanced protection against corrosion.
4. Central Switch Configuration: The switch is centrally located for convenient operation, with upper terminals connecting to the horizontal busbar and lower terminals to the circuit breaker for efficient power management.

Product Advantages

1. Versatility: Offers versatile electrical configurations to meet a wide range of power distribution needs.
2. Modular Design: Features a modular design for easy assembly and integration into existing systems.
3. Scalability: Provides a scalable series suitable for various applications and scalability needs.
4. Practicality: Ensures practicality in managing diverse power management requirements.
5. Contemporary Structure: Features a contemporary structure for enhanced functionality and performance.
6. High Protection Rating: Offers a high protection rating against environmental hazards, ensuring safety and reliability.

Conclusion

The GGD Fixed Switchgear Cabinet is an essential component for modern power systems, ensuring the reliable and efficient distribution of electrical power while minimizing operational expenses. It is a vital asset for contemporary electrical infrastructure, providing a solid foundation for power management in the 21st century. With its advanced features and robust design, the GGD Fixed Switchgear Cabinet stands as a testament to innovation in electrical distribution, making it a preferred choice for stakeholders in the energy sector.
