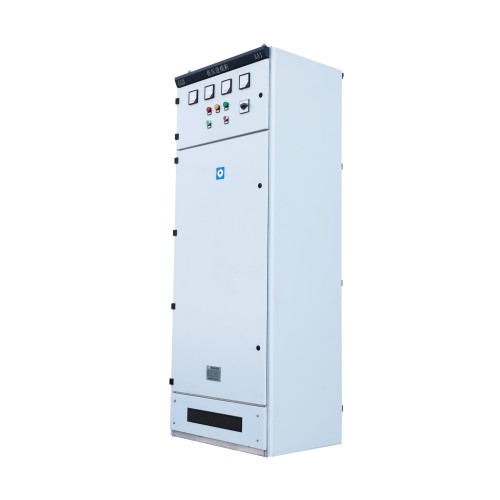

Product Name: GGD Fixed Switchgear Cabinet

Product Description:

The GGD Fixed-Type electric switchgear is a premium low-voltage distribution cabinet designed to meet the stringent specifications of modern power distribution systems. It embodies the principles of safety, economy, and reliability, making it a cornerstone in electrical infrastructure. Engineered for high-load environments, this cabinet is known for its exceptional breaking capacity and thermal stability, alongside its adaptable electrical schemes and robust protection features. It is tailored for AC 50Hz systems with a rated voltage of 380V and is capable of managing currents up to 3150A, positioning it as a versatile solution for the control and distribution of electrical power across a spectrum of applications.

Applications:

This switchgear cabinet is applicable in a multitude of settings where reliable power distribution is paramount. It is commonly utilized in power plants, substations, and within the energy sector's配电 systems. It also finds use in coal, oil, and chemical industries, as well as in transportation sectors including aviation, railways, and port facilities. Its resilience and adaptability make it a preferred choice for high-rise buildings, sports venues, and a variety of industrial and manufacturing environments.

Technical Features:

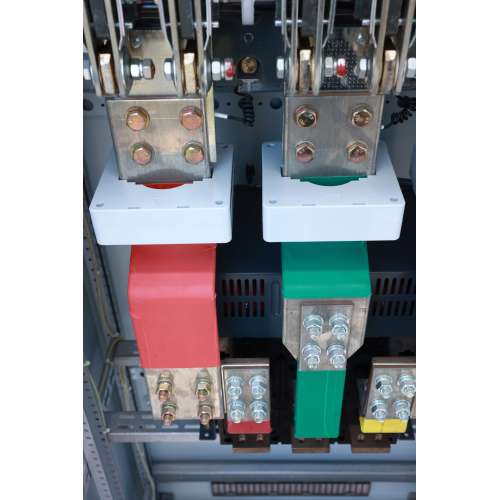

1. The cabinet is fully enclosed, equipped with TMY hard copper busbars for optimal conductivity and durability. The horizontal busbars are mounted in a dedicated frame at the top of the cabinet, and vertical busbars are secured with clamps for added stability.

2. The protective circuitry includes a dedicated PE line and conductive metal components that span the length of the cabinet, with the N busbar strategically placed at the front for ease of access.

3. The main frame is crafted from 8MF steel, cold-formed and assembled with a modular hole pattern of E=20mm, offering a customizable and robust structure. It is coated with a powder coating for superior corrosion resistance.

4. The switch is centrally located within the cabinet, with upper terminals connected to the horizontal busbar and lower terminals connected to the circuit breaker, ensuring efficient electrical distribution.

Key Benefits:

1. Flexible electrical scheme design to suit a variety of power distribution needs.

2. Modular assembly for straightforward integration into existing electrical systems.

3. Versatile series to accommodate a broad range of power distribution requirements.

4. Practical design for efficient power distribution in daily operations.

5. Innovative structure for enhanced performance and functionality.

6. High protection class for superior safety and durability in all operating environments.

The GGD Fixed Switchgear Cabinet is an essential component in modern power systems, ensuring the reliable and efficient distribution of electrical power while reducing operational costs, making it an indispensable asset for advanced electrical infrastructure.
