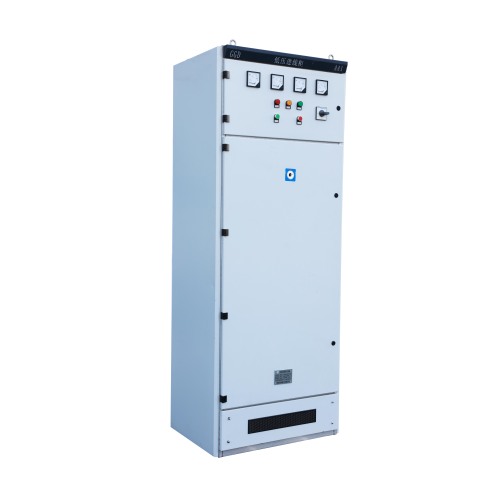

Low Voltage Fixed Switchgear

Get Latest Price

Contact Now

Brand: Jutai

Description

Product Description

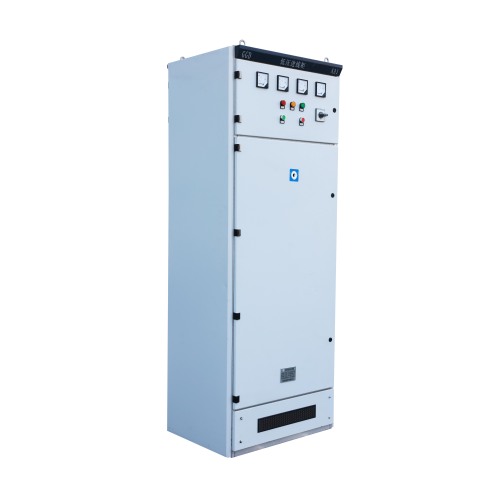

Product Name: GGD Fixed Switchgear Cabinet

Product Description:

The GGD Fixed-Type electric switchgear is a cutting-edge solution in low-voltage power distribution, meticulously designed to cater to the evolving needs of the energy sector with a focus on safety, economic efficiency, and reliability. This switchgear cabinet is built to withstand the rigors of high-load conditions, offering a high level of breaking capacity and thermal stability, along with a flexible and secure electrical design. It is specifically engineered for AC 50Hz systems with a rated voltage of 380V and is capable of handling currents up to 3150A, making it an ideal choice for the control and distribution of electrical power in a variety of applications.

Applications:

The GGD Fixed Switchgear Cabinet is designed for a broad spectrum of power distribution environments, including power plants, substations, and other energy-intensive facilities. It is also Very suitable for use in industries such as coal, oil, and chemical, as well as in transportation sectors like aviation, railways, and port facilities. Additionally, it is widely used in high-rise buildings, sports venues, and across industrial and manufacturing settings.

Technical Features:

1. The cabinet features a fully enclosed design with TMY hard copper busbars, ensuring robustness and reliability. The horizontal busbars are mounted in a dedicated frame at the top of the cabinet, while the vertical busbars are securely fixed with busbar clamps.

2. The protective circuitry is composed of a dedicated PE line and conductive metal components that run the length of the cabinet, with the N busbar conveniently located at the front for easy access.

3. The main frame is constructed using 8MF steel, which is cold-formed and assembled with a modular hole pattern of E=20mm, providing a strong and adaptable structure. The frame is finished with a powder coating for enhanced corrosion resistance and durability.

4. The switch is centrally positioned within the cabinet, with upper connection terminals linked to the horizontal busbar and lower terminals connected to the circuit breaker, ensuring efficient and secure electrical flow.

Key Benefits:

1. High adaptability in electrical scheme design to accommodate various power distribution needs.

2. Easy modular assembly for seamless integration into existing electrical systems.

3. Versatility in series to meet a wide range of power distribution requirements.

4. Practicality in design for efficient power distribution in daily operations.

5. Innovative structure for enhanced performance and functionality.

6. High protection class for superior safety and durability in all operating environments.

The GGD Fixed Switchgear Cabinet is a critical component in modern power systems, ensuring the reliable and efficient distribution of electrical power while reducing operational costs, making it an indispensable asset for advanced electrical infrastructure.
