GGD series Power Distribution Cabinet
GGD series Power Distribution Cabinet
GGD series Power Distribution Cabinet
GGD series Power Distribution Cabinet
GGD series Power Distribution Cabinet

GGD series Power Distribution Cabinet

Get Latest Price
    Share:

    BrandJutai

    Description
    Product Description

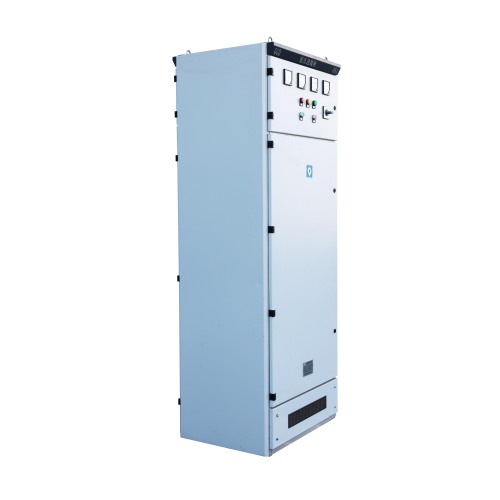

    Product Name: GGD Fixed Switchgear Cabinet

    Product Description:

    The GGD Fixed-Type electric switchgear is a sophisticated solution in the realm of low-voltage power distribution, designed to address the intricate demands of modern electrical systems with an emphasis on safety, economic efficiency, and reliability. This switchgear is crafted to operate under high-load conditions, boasting high interrupting capacity and thermal stability, along with a flexible electrical design and comprehensive protection features. It is tailored for AC 50Hz systems with a rated voltage of 380V and is capable of managing currents up to 3150A, positioning it as a versatile solution for the control and distribution of electrical power across various applications.

    Applications:

    This switchgear cabinet is engineered for a spectrum of power distribution applications, including power plants, substations, and配电 systems within the energy sector. It is also well-suited for the coal, oil, and chemical industries, as well as transportation sectors such as aviation, railways, and port facilities. Its robust construction makes it an ideal choice for high-rise buildings, sports venues, and a variety of industrial and manufacturing environments.

    Technical Features:

    1. The cabinet is fully enclosed, featuring TMY hard copper busbars for superior electrical conductivity and durability. The horizontal busbars are mounted in a dedicated frame at the top of the cabinet, while vertical busbars are secured with clamps for added stability.
    2. The protective circuitry includes a dedicated PE line and conductive metal components that span the length of the cabinet, with the N busbar conveniently located at the front for easy access.

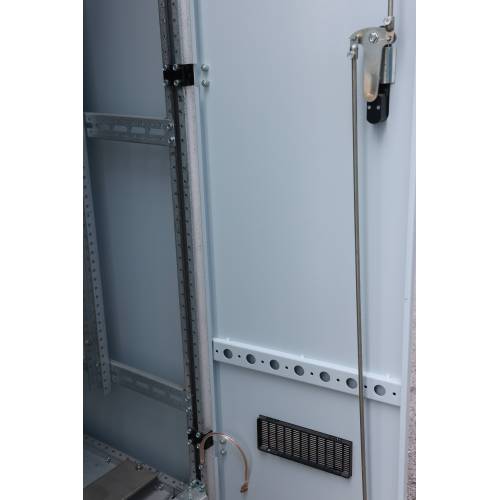

    3. The main frame is constructed from 8MF steel, cold-formed and assembled with a modular hole pattern of E=20mm, offering a customizable and robust structure. It is coated with a powder coating for superior corrosion resistance.

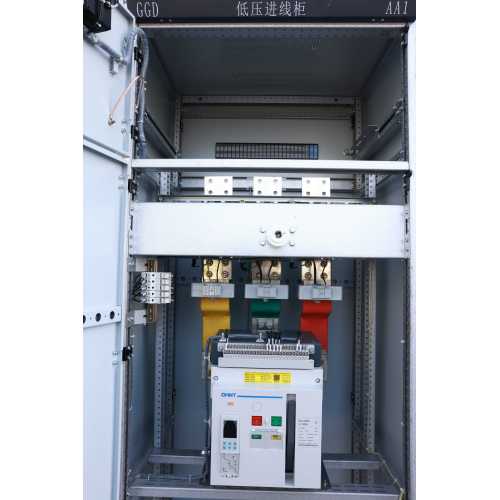

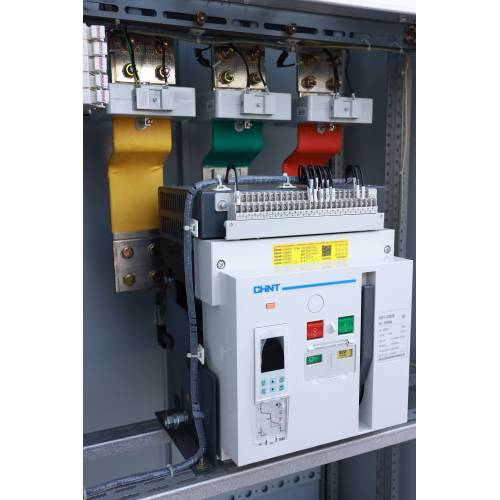

    4. The switch is centrally positioned within the cabinet, with upper terminals connected to the horizontal busbar and lower terminals connected to the circuit breaker, ensuring efficient electrical distribution.

    Key Benefits:

    1. Flexible electrical scheme design to suit a variety of power distribution needs.
    2. Modular assembly for seamless integration into existing electrical systems.
    3. Versatile series to accommodate a broad range of power distribution requirements.
    4. Practical design for efficient power distribution in daily operations.
    5. Innovative structure for enhanced performance and functionality.
    6. High protection class for superior safety and durability in all operating environments.

    The GGD Fixed Switchgear Cabinet is a critical component in modern power systems, ensuring the reliable and efficient distribution of electrical power while reducing operational costs, making it an indispensable asset for advanced electrical infrastructure.
