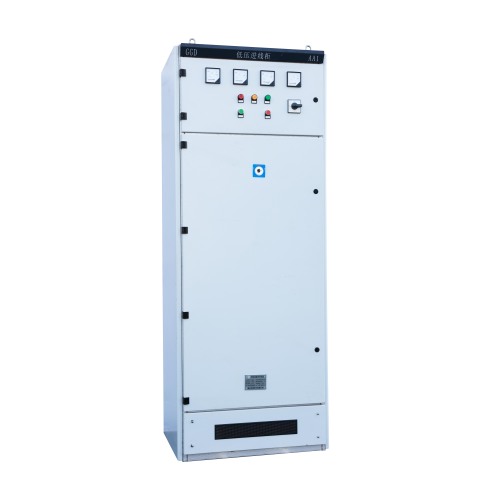

Product Name: GGD Fixed Switchgear Cabinet

Product Description:

The GGD Fixed-Type electric switchgear is designed in accordance with the requirements of the energy department,广大电力 users, and design departments, adhering to the principles of safety, economy, rationality, and reliability. This low-voltage distribution cabinet is characterized by its high breaking capacity, good thermal stability, flexible electrical schemes, convenient combination, strong series and practicality, novel structure, and high protection class. It is intended for the AC 50Hz, rated working voltage of 380V, and rated working current up to 3150A distribution systems of power users, serving for the conversion, distribution, and control of electrical energy for power, lighting, and distribution equipment.

Application Areas:

Widely used in distribution systems of power plants, substations, and other energy enterprises such as coal, petroleum, and chemical industries, as well as transportation enterprises like aviation, railways, and port facilities, high-rise buildings, sports venues, and other architectural facilities, and industrial and mining enterprises, large-scale manufacturing industries, etc.

Technical Features:

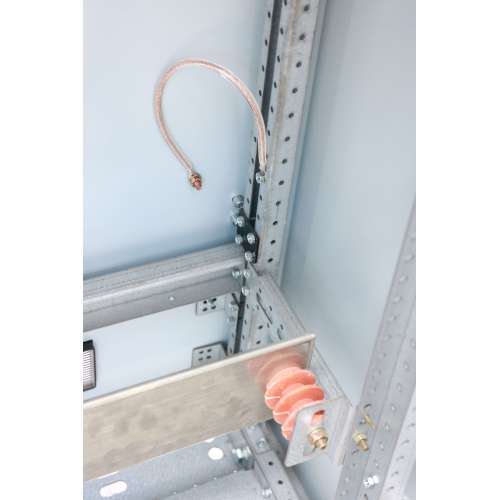

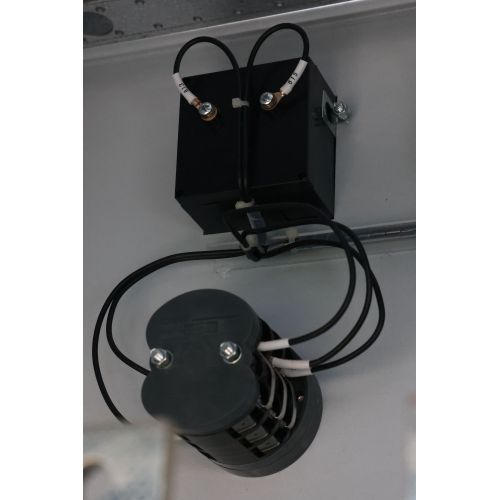

1. The product consists of an enclosed cabinet with busbars made of TMY hard copper bars, with horizontal busbars mounted in a dedicated busbar frame placed at the top of the cabinet, and vertical busbars fixed with busbar clamps.

2. The protective circuit of the switchgear is composed of a separately installed PE line that runs the entire length of the arrangement and conductive metal components, with the N busbar located at the front of the cabinet.

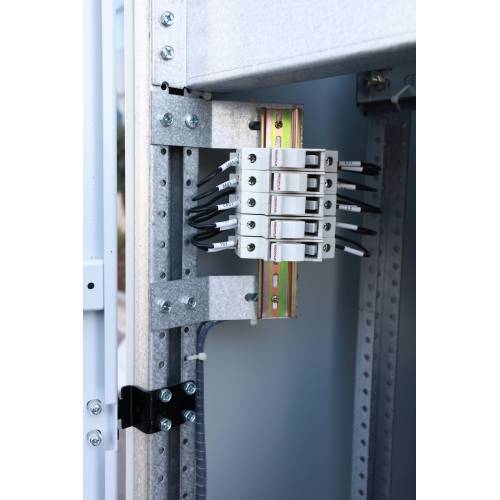

3. The main structure of the cabinet is made of 8MF steel (cold-rolled steel bending), assembled with dedicated connecting pieces, with an installation modular hole E=20mm, and coated with powder coating for protection.

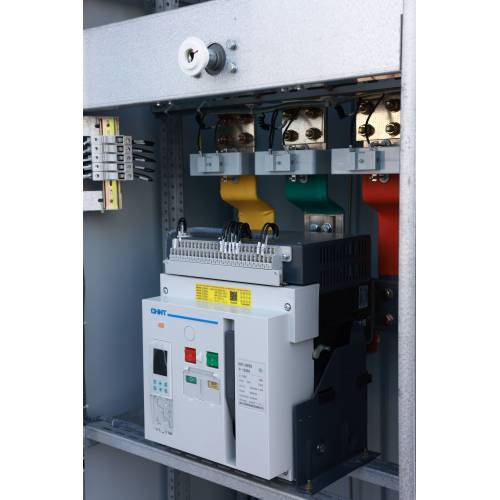

4. The Fixed-Type Switchgear is placed in the middle of the Fixed Switchgear, with its upper接线端 connected to the horizontal busbar and the lower接线端 connected to the circuit breaker.
