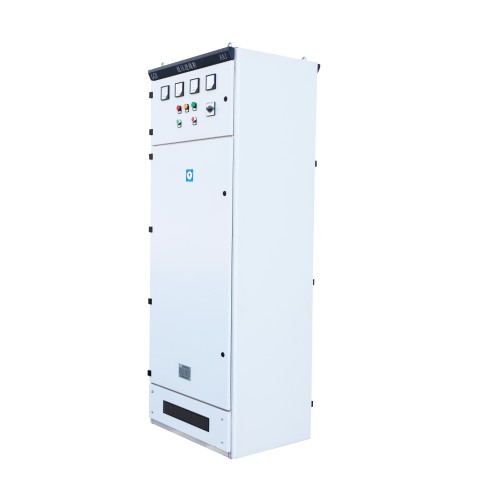

GGD Fixed Power Switchgear

Get Latest Price

Contact Now

Brand: Jutai

Description

Product Description

Overview

The GGD Fixed-Type electric switchgear is a robust and reliable solution for power distribution in various industrial and commercial applications. Designed with safety, efficiency, and durability in mind, GGD switchgear is the backbone of any electrical infrastructure that demands high standards of performance and dependability.

Key Features

The product consists of a closed cabinet. The busbar is made of TMY hard copper busbar. The horizontal busbar is installed on the top of the cabinet with a special busbar frame, and the vertical busbar is fixed with a busbar clamp.

The protection circuit of the switch cabinet is composed of a separately installed PE line and a conductive metal component that runs through the entire length of the arrangement. The N busbar is placed in the front of the cabinet.

The main frame of the cabinet is made of 8MF steel (bent cold-rolled steel) and is assembled with special connectors. Its installation modulus hole E=20mm is sprayed with plastic as a protective coating.

The switch is placed in the middle of the cabinet, its upper terminal is connected to the horizontal busbar, and the lower terminal is connected to the circuit breaker.

Technical Specifications

Rated Voltage: AC 380V/220V, 50Hz/60Hz
Rated Current: Up to 3150A
Rated Short-Time Withstand current: 50kA for 1 second
Rated Dynamic Withstand current: 120kA for 3 seconds
Climatic Category: Designed for indoor use in non-hazardous environments
Insulation Level: Solid insulation, providing high resistance to electrical stress

Applications

Industrial Facilities: Ideal for factories, workshops, and production lines.
Commercial Buildings: Suited for office buildings, shopping centers, and hotels.
Infrastructure Projects: Perfect for power stations, substations, and public utility systems.

Advantages

High Reliability: Ensures consistent performance and grid stability.
Space-Saving: Compact design for efficient use of space in any electrical room.
Low Maintenance: Reduces the need for frequent inspections and servicing.
Environmental Protection: Contributes to energy conservation and environmental sustainability.

Installation and Operation

Installation: GGD switchgear is designed for easy installation with standardized mounting options.
Operation: User-friendly interface with clear Indicator for safe and efficient operation.
Integration: Compatible with various protection and control systems for seamless integration into existing electrical networks.

Conclusion

The GGD Fixed Switchgear is a comprehensive solution for power distribution that combines safety, efficiency, and durability. It is the ideal choice for applications where reliability and performance are paramount. With its modular design and ease of maintenance, the GGD switchgear is ready to meet the challenges of today's dynamic power distribution requirements.

For more information or to discuss how the GGD Fixed-Type Switchgear can be tailored to your specific needs, contact us today. We are committed to providing you with the best power distribution solutions for your business.
