GGD Metal Clad Switchgear

Get Latest Price

Contact Now

Brand: Jutai

Description

Product Description

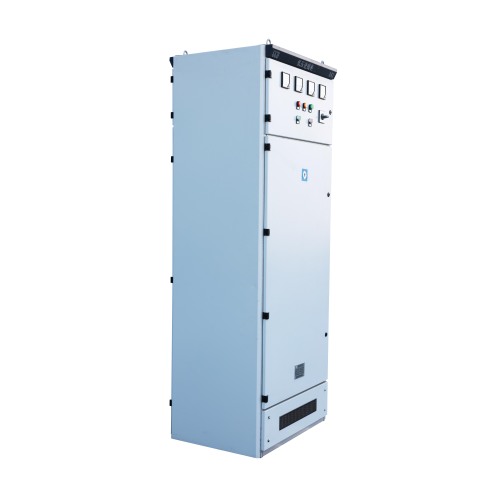

Product Name: GGD Fixed Switchgear Cabinet

Product Description:

The GGD Fixed-Type electric switchgear is an advanced low-voltage distribution cabinet designed to address the complex demands of contemporary power distribution with a focus on safety, economy, and reliability. This switchgear is crafted for high-load scenarios, offering superior中断能力 and thermal stability, along with a versatile electrical design and advanced protection mechanisms. It is optimized for AC 50Hz systems with a rated voltage of 380V and can handle currents up to 3150A, making it well-suited for controlling and distributing electrical power in a variety of applications.

Applications:

This switchgear cabinet is designed for deployment in a wide array of power distribution environments, including power plants, substations, and other energy sector facilities. It is equally at home in the coal, oil, and chemical industries, as well as in transportation sectors such as aviation, railways, and port facilities. Its robust design also makes it a popular choice for high-rise buildings, sports venues, and various industrial and manufacturing settings.

Technical Features:

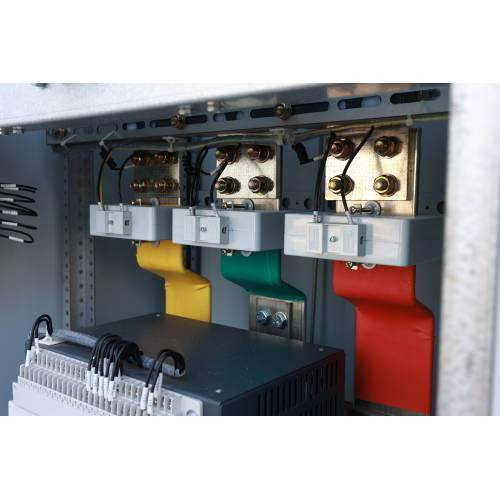

1. The cabinet is fully enclosed, equipped with TMY hard copper busbars for enhanced conductivity and durability. The horizontal busbars are mounted in a dedicated frame at the top of the cabinet, while the vertical busbars are secured with clamps for added stability.

2. The protective circuitry includes a dedicated PE line and conductive metal components that run the length of the cabinet, with the N busbar positioned at the front for easy access.

3. The main frame is constructed from 8MF steel, cold-formed and assembled with a modular hole pattern of E=20mm, providing a strong and adaptable structure. The frame is finished with a powder coating for enhanced corrosion resistance and durability.

4. The switch is centrally located within the cabinet, with upper terminals connected to the horizontal busbar and lower terminals connected to the circuit breaker, ensuring efficient and secure electrical flow.

Key Benefits:

1. Customizable electrical scheme design to accommodate diverse power distribution needs.

2. Modular assembly for simplified integration into existing electrical systems.

3. Versatile series to meet a wide range of power distribution requirements.

4. Practical design for efficient power distribution in everyday operations.

5. Innovative structure for improved performance and functionality.

6. High protection class for enhanced safety and long-term durability.

The GGD Fixed Switchgear Cabinet is a key component in modern power systems, ensuring the reliable and efficient distribution of electrical power while reducing operational costs, making it an indispensable asset for advanced electrical infrastructure.
