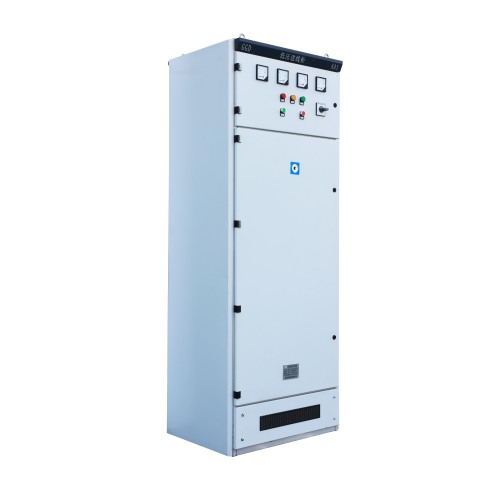

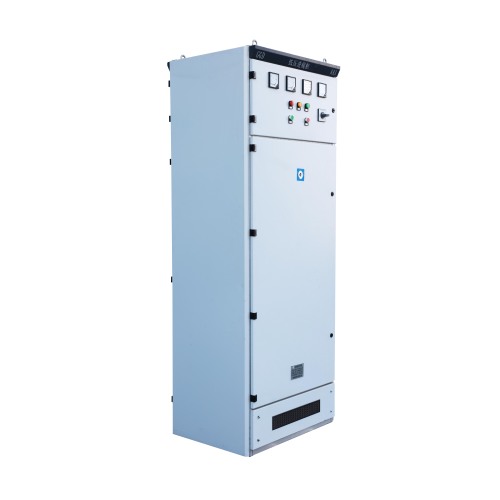

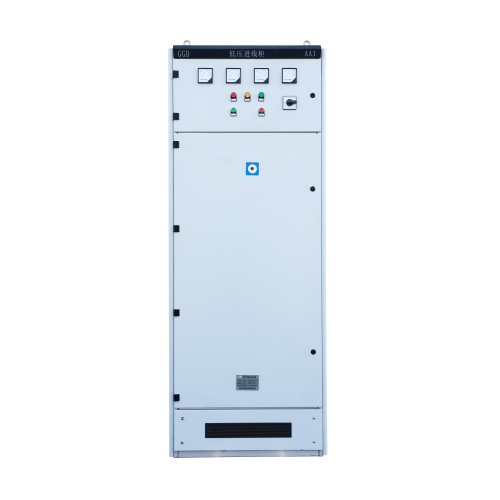

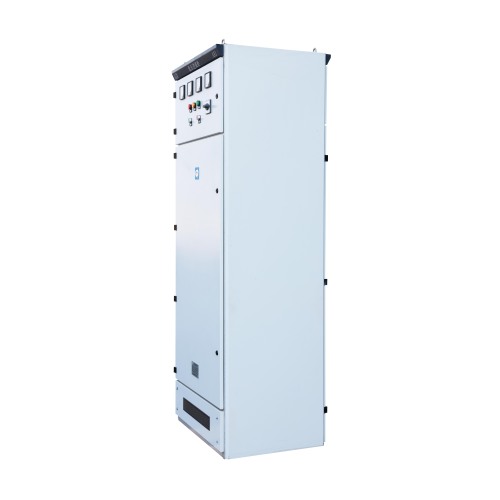

GGD Fixed Switchgear Cabinet: A Reliable Low-Voltage Power Distribution Solution

Product Description

The GGD Fixed-Type electric switchgear is a precision-engineered low-voltage distribution solution crafted to surpass the stringent standards of energy regulators, power consumers, and design engineers. With a keen emphasis on safety, cost-efficiency, and reliability, this switchgear is built for high-load environments, boasting high breaking capacity, thermal stability, and adaptable electrical schemes, alongside robust protection features. It is tailored for AC 50Hz systems with a rated voltage of 380V and can handle currents up to 3150A, making it well-suited for the conversion, distribution, and control of electrical power in a multitude of settings.

Application Areas

The GGD Fixed Switchgear Cabinet is versatile and finds application in a variety of critical environments, including:

• Power plants and substations
• Energy-intensive industries such as coal, oil, and chemical sectors
• Transportation infrastructure, including aviation, railways, and port facilities
• High-rise buildings, sports venues, and industrial and manufacturing enterprises

Technical Features

1. Fully Enclosed Design: Equipped with TMY hard copper busbars for enhanced conductivity, featuring horizontal busbars mounted in a dedicated frame at the top and vertical busbars secured with clamps for safety.
2. Advanced Protective Circuitry: Incorporates a dedicated PE line and conductive metal components for enhanced safety, with the N busbar positioned at the front for easy access.
3. Durable Frame Construction: Crafted from 8MF steel, the main frame is cold-formed and assembled with a modular hole pattern of E=20mm, ensuring flexibility. It is coated with powder coating for superior corrosion resistance.
4. Central Switch Positioning: The switch is centrally positioned for convenient operation, with upper connection terminals linked to the horizontal busbar and lower terminals connected to the circuit breaker for efficient power management.

Product Advantages

1. Flexibility: Offers flexibility in electrical scheme design to accommodate specific application needs.
2. Modular Assembly: Features modular assembly for seamless integration into existing systems.
3. Versatility: Provides a series that can accommodate a wide range of power distribution requirements.
4. Practicality: Designed for practicality in meeting the broad range of power distribution needs in daily operations.
5. Innovative Structure: Features an innovative structure for enhanced functionality and performance.
6. Safety and Durability: Offers a high protection class for superior safety and long-term durability.

Conclusion

The GGD Fixed Switchgear Cabinet is an indispensable component for modern power systems, ensuring reliable and efficient power distribution while minimizing operational costs. It is a vital asset for contemporary electrical infrastructure, providing a solid foundation for power management in the 21st century. With its advanced features and robust design, the GGD Fixed Switchgear Cabinet stands as a testament to innovation in electrical distribution, making it a preferred choice for stakeholders in the energy sector.
