GGD Fixed Switchgear Cabinet: Next-Generation Low-Voltage Distribution

Product Overview

The GGD Fixed-Type electric switchgear is a state-of-the-art solution designed to meet the intricate demands of the modern energy sector. With a keen focus on safety, cost-effectiveness, and reliability, this low-voltage distribution cabinet excels in high-load environments. It features superior interrupting capacity, thermal stability, and a flexible electrical design, complemented by advanced protection mechanisms. Optimized for AC 50Hz systems with a rated voltage of 380V, it is capable of handling currents up to 3150A, making it an ideal choice for controlling and distributing electrical power across various applications.

Applications

The GGD Fixed Switchgear Cabinet is versatile and finds application in a broad spectrum of settings, including:

• Power plants and substations
• Energy sector systems
• Coal, oil, and chemical industries
• Transportation sectors such as aviation, railways, and port facilities
• High-rise buildings, sports venues, and industrial manufacturing environments

Technical Highlights

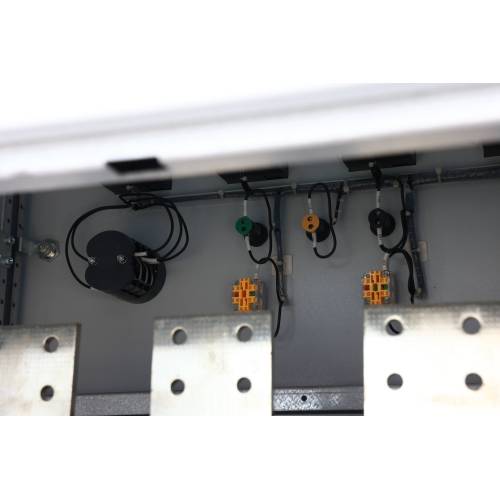

1. Enclosure and Busbars: Fully enclosed design with TMY hard copper busbars, featuring horizontal busbars mounted in a dedicated frame at the top and vertical busbars secured with clamps.

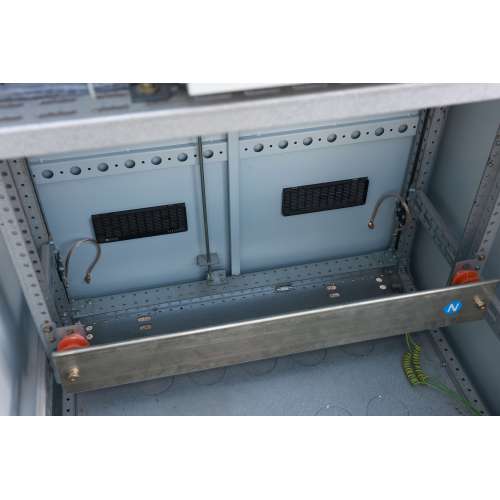

2. Circuit Protection: Includes a dedicated PE line and conductive metal components, with the N busbar positioned at the front of the cabinet for easy identification and safety.
3. Frame Construction: The main frame is constructed from 8MF steel, cold-formed, and assembled with a modular hole pattern of E=20mm, ensuring structural integrity. It is coated with powder coating for enhanced corrosion protection.
4. Switch Configuration: The switch is centrally located, with upper terminals connected to the horizontal busbar and lower terminals connected to the circuit breaker for efficient power management.

Key Benefits

1. Customization: Offers customizable electrical scheme design to meet specific application needs.
2. Modularity: Features modular assembly for easy integration into existing systems.
3. Versatility: Provides a series of options to accommodate a wide range of power distribution requirements.
4. Efficiency: Features a practical design for efficient power distribution in day-to-day operations.
5. Innovation: Boasts an innovative structure for improved performance and functionality.
6. Safety: Delivers a high protection class for enhanced safety and long-term durability.

Conclusion

The GGD Fixed Switchgear Cabinet stands as a pillar in contemporary power systems, ensuring the reliable and efficient distribution of electrical power while reducing operational costs. It is an indispensable asset for advanced electrical infrastructure, providing a solid foundation for power management in the 21st century.
