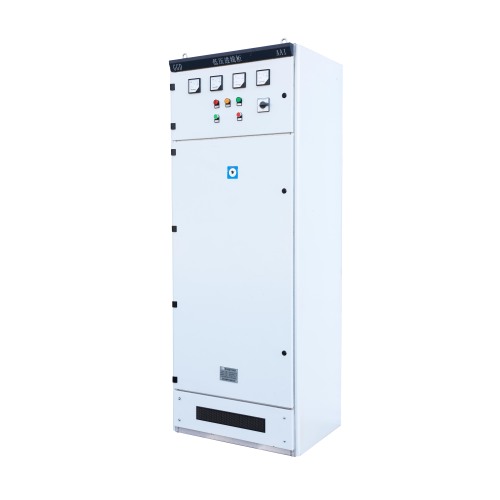

GGD Fixed Switchgear Cabinet: Advanced Low-Voltage Distribution Solution

Product Description

The GGD Fixed-Type electric switchgear is a cutting-edge low-voltage distribution cabinet tailored to the rigorous standards of the energy sector. It excels in safety, economic efficiency, and reliability, managing high electrical loads with exceptional breaking capacity and thermal stability. This cabinet offers adaptable electrical configurations and robust protection mechanisms, making it suitable for AC 50Hz systems with a rated voltage of 380V and capable of handling currents up to 3150A. It is the perfect solution for controlling and distributing electrical power across a spectrum of applications.

Application Areas

The GGD Fixed Switchgear Cabinet is designed for a diverse range of power distribution environments, including:

• Power plants and substations
• Energy sector facilities
• Coal, oil, and chemical industries
• Transportation sectors such as aviation, railways, and port facilities
• High-rise buildings, sports venues, and industrial and manufacturing settings

Technical Features

1. Enclosure and Busbars: The cabinet is fully enclosed, featuring TMY hard copper busbars for optimal conductivity. Horizontal busbars are mounted in a dedicated frame at the top, while vertical busbars are secured with clamps for added stability.
2. Protective Circuitry: Includes a dedicated PE line and conductive metal components for safety, with the N busbar positioned at the front of the cabinet for easy access and maintenance.
3. Frame Construction: The main frame is constructed from 8MF steel, cold-formed and assembled with a modular hole pattern of E=20mm, ensuring flexibility and adaptability. It is finished with a powder coating for superior corrosion resistance.

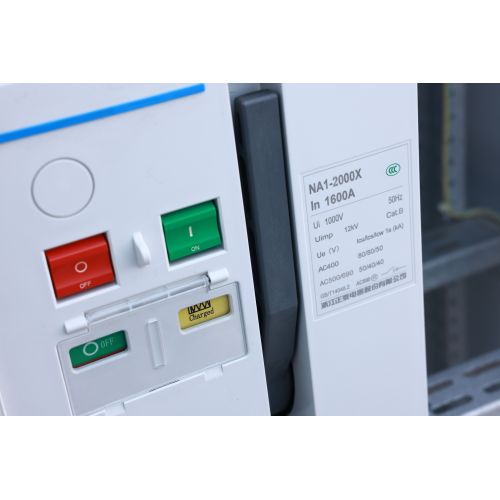

4. Switch Configuration: The switch is centrally located for easy access, with upper terminals connected to the horizontal busbar and lower terminals connected to the circuit breaker, ensuring efficient power management.

Product Advantages

1. Flexibility: Offers a flexible electrical scheme design to accommodate a variety of needs.
2. Integration: Features easy modular assembly for seamless integration into existing systems.
3. Versatility: Provides a versatile series to fit a broad range of power distribution requirements.
4. Efficiency: Features a practical design for efficient power distribution in everyday operations.
5. Innovation: Boasts an innovative structure for enhanced performance and functionality.
6. Safety: Delivers a high protection class for superior safety and durability.

Conclusion

The GGD Fixed Switchgear Cabinet is a critical component in modern power systems, ensuring the reliable and efficient distribution of electrical power while reducing operational costs. It is a vital asset for advanced electrical infrastructure, providing a solid foundation for power management in the 21st century. With its advanced features and robust design, the GGD Fixed Switchgear Cabinet stands as a testament to innovation in electrical distribution.
