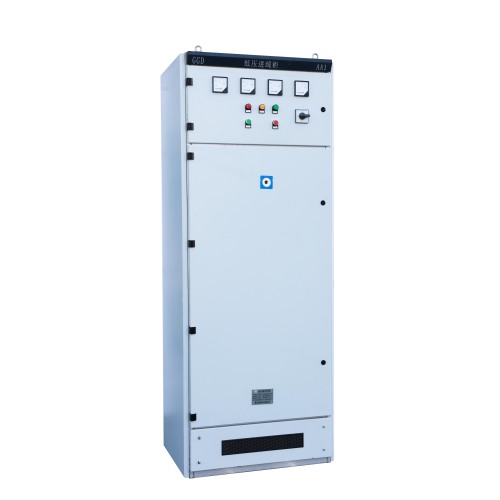

GGD Fixed Switchgear Cabinet: Excellence in Low-Voltage Distribution

Product Description

The GGD Fixed-Type electric switchgear is a cutting-edge low-voltage distribution cabinet that sets new standards in the energy sector by prioritizing safety, economy, and reliability. Engineered for high-load scenarios, this switchgear offers a high breaking capacity and thermal stability, coupled with a flexible electrical design and robust protection features. It is optimized for AC 50Hz systems with a rated voltage of 380V and can handle currents up to 3150A, making it an ideal solution for managing electrical power across diverse applications.

Application Areas

The GGD Fixed Switchgear Cabinet is versatile and finds application in a range of critical environments, including:

• Power generation facilities and substations
• Energy sector distribution systems
• Coal, oil, and chemical industries
• Transportation sectors: aviation, railways, and port facilities
• Architectural structures: high-rise buildings and sports venues
• Industrial and manufacturing enterprises

Technical Features

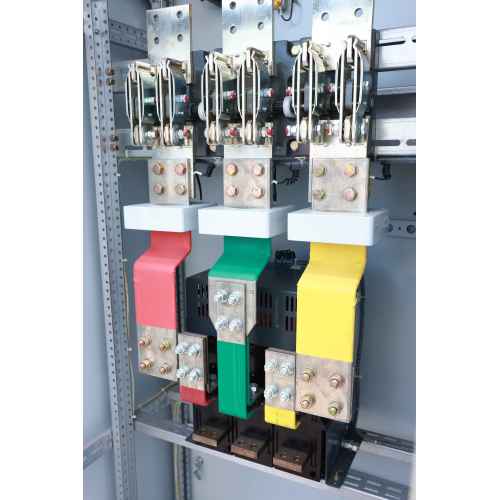

1. Fully Enclosed Design: Houses TMY hard copper busbars for maximum conductivity, with horizontal busbars mounted in a dedicated frame at the top and vertical busbars secured with clamps for safety.

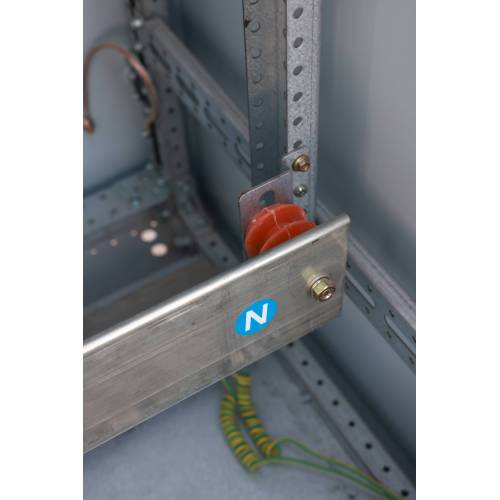

2. Advanced Protective Circuitry: Incorporates a dedicated PE line and conductive metal components for enhanced safety, with the N busbar positioned at the front for easy access.
3. Durable Frame Construction: Crafted from 8MF steel, the main frame is cold-formed and assembled with a modular hole pattern of E=20mm, ensuring flexibility. It is coated with powder coating for superior corrosion resistance.
4. Central Switch Positioning: The switch is centrally positioned for convenient operation, with upper connection terminals linked to the horizontal busbar and lower terminals connected to the circuit breaker for efficient power management.

Product Advantages

1. Adaptability: Provides adaptability in electrical scheme design to meet specific application needs.
2. Modular Assembly: Features modular assembly for seamless integration into existing systems.
3. Versatility: Offers a series that can accommodate a wide range of power distribution requirements.
4. Practicality: Designed for practicality in meeting the broad range of power distribution needs in daily operations.
5. Innovative Structure: Features an innovative structure for enhanced functionality and performance.
6. Safety and Durability: Offers a high protection class for superior safety and long-term durability.

Conclusion

The GGD Fixed Switchgear Cabinet is an indispensable component for modern power systems, ensuring reliable and efficient power distribution while minimizing operational costs. It is a vital asset for contemporary electrical infrastructure, providing a solid foundation for power management in the 21st century. With its advanced features and robust design, the GGD Fixed Switchgear Cabinet stands as a testament to innovation in electrical distribution, making it a preferred choice for stakeholders in the energy sector.
