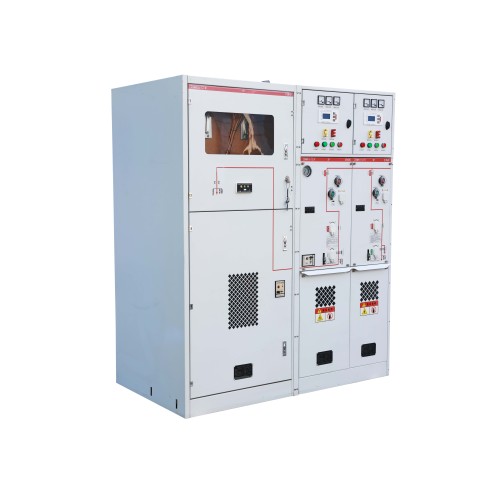

XGN15 Series RMU (Ring Main Unit)

Product Overview:

Experience the XGN15 Series Insulated Ring Main Unit (RMU), a groundbreaking switchgear solution that epitomizes the convergence of cutting-edge technology and engineering prowess. This series sets a new standard in power distribution by combining the excellence of SF6 gas-insulated switches with the resilience of air-insulated metal-enclosed structures, offering a compact and adaptable solution for contemporary electrical distribution challenges.

Key Highlights:

1. Superior Longevity: Designed for extended service, the XGN15 Series Ring Main Unit Switchgear boasts a mechanical lifespan of up to 20,000 operations, markedly decreasing the need for routine maintenance.

2. Streamlined Maintenance Accessibility: The unit's design prioritizes maintenance efficiency, offering direct front access for switch monitoring and operation, and rear access for swift cable diagnostics and maintenance.

3. Compact and Space-Efficient: The XGN15 Series RMU maintains a compact profile while including a rear pressure relief channel, ensuring minimal space occupation and suitability for diverse installation environments.

4. Segmented for Enhanced Safety: The switchgear is meticulously divided into four separate safety compartments: busbar, switchgear unit, cable, and control and operating mechanism chambers, ensuring operational safety and ease of management.

5. Durable and Aesthetically Pleasing Enclosure: Constructed from robust materials like aluminum-zinc coated sheets, galvanized sheets, or cold-rolled sheets, the cabinet shell is further enhanced with a powder-coated finish for superior weather resistance and aesthetic appeal.

6. Versatility in Application: The XGN15 Series RMU is ideal for 10kV distribution systems in a spectrum of settings, including industrial, commercial, residential, high-rise, mining, and port facilities, and can be seamlessly integrated into ring network systems for power supply and distribution.

7. Advanced Security Measures: Equipped with SF6 gas pressure indicators for continuous monitoring, a spacious cable chamber for additional equipment, and safety interlocks to prevent unauthorized operations.

8. Robust Environmental Adaptability: The XGN15 Series RMU is engineered to perform in a broad spectrum of ambient temperatures, from -15°C to +40°C, with an average daily temperature not surpassing 35°C.

9. Adherence to Global Standards: This RMU adheres to international standards such as IEC 62271 and national standards like GB3906, guaranteeing a high standard of quality and performance.

10. Sustainable and Minimal Maintenance: The XGN15 Series RMU is distinguished by its minimal maintenance needs, extended service life, high operational reliability, and commitment to environmental sustainability.

The XGN15 Series Inflatable Ring Main Unit stands as a beacon of innovation in power distribution, delivering a secure, reliable, and efficient solution for managing and safeguarding electrical power across a multitude of network configurations.
