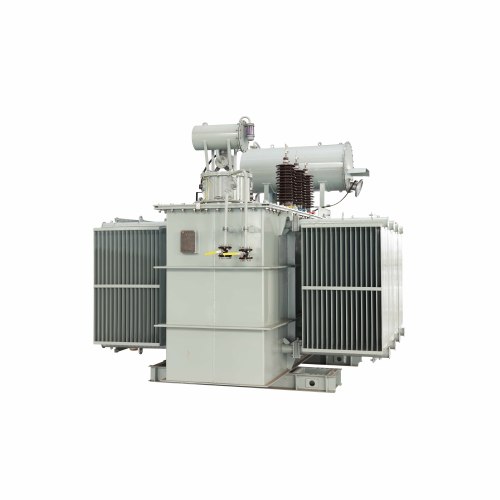

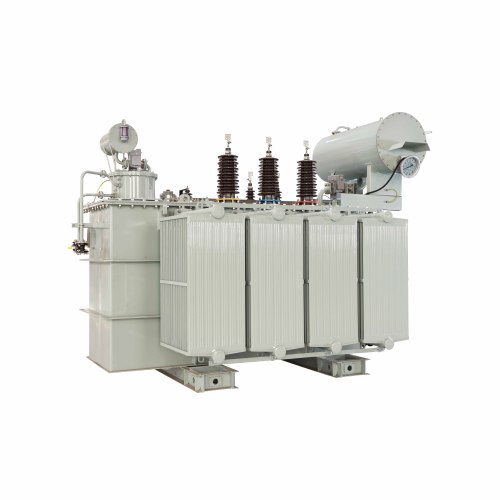

Hanging core transformer oil tank

Get Latest Price

Contact Now

Brand: JUTAI

Place Of Origin: China

Use: Power, Current, Electronic, High Frequency, Instrument

Phase: Three, Single

Coil Structure: Toroidal

Number Of Coils: Autotransformer

Description

Product Description

Hanging Core Transformer oil tank for Sustainable Power Solutions

Structural features

Fully sealed design: The Oil Immersed Transformer Tanks of the new energy transformer adopts a fully sealed structure to completely isolate the transformer oil from the outside air, effectively preventing the oxidation of the oil and the infiltration of moisture, thereby improving the stability and reliability of the equipment.
Material and anti-corrosion: The oil tank is usually made of stainless steel plate, and the surface is specially shot peened or painted. It has good anti-corrosion, anti-salt spray, anti-humidity and anti-mildew properties, suitable for harsh outdoor environments.
Compact design: small size and light weight, about 1/3 to 1/5 of the traditional transformer of the same capacity, saving installation space.

Functional features

Insulation and heat dissipation: The Transformer Oil Storage Tank is filled with insulating oil, which is used for insulation and heat dissipation of the transformer core and coil, ensuring that the equipment maintains low losses while operating efficiently.
Remote monitoring: The oil tank can be equipped with a pressure gauge and thermometer with a communication interface to realize remote monitoring, operation and maintenance of the transformer.
Easy maintenance: The fully sealed design reduces the maintenance requirements, and the use of plug-in fuses and other designs makes equipment replacement and maintenance more convenient.

Market situation

Demand growth: With the rapid development of new energy power generation (such as photovoltaic and wind power), the market demand for new energy transformer oil tanks continues to increase. Its application scenarios are wide, including residential areas, industrial and mining enterprises, public places, etc.
Technology upgrade: The industry is moving towards intelligence and environmental protection, such as using aluminum instead of copper to reduce costs and environmental impact.
Capacity expansion: Some companies are expanding the production capacity of new energy transformer oil tanks, such as the construction of a digital factory with 9,000 new energy transformer oil tanks.
In summary, new energy transformer oil tanks have become key equipment in new energy power systems with their high performance and adaptability, and the future market prospects are broad.

Product Description

The oil tank is the outer shell of the transformer, which contains the iron core and windings and is filled with transformer oil, so that the iron core and windings are immersed in the oil. Transformer oil plays an insulating and heat dissipating role.

Large transformers generally have two oil tanks, one is the main body oil tank; the other is the on-load tapping oil tank, and the on-load tapping oil tank is equipped with a tap changer.

This is because the tap changer will generate arcs during operation. If it is operated frequently, the insulation performance of the oil will decrease. Therefore, a separate oil tank is set to place the tap changer separately.
