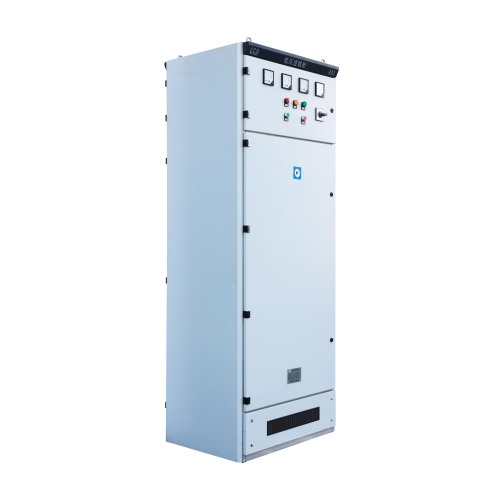

GGD Fixed Switchgear Cabinet: Precision for Power Distribution Excellence

Product Description

The GGD Fixed-Type electric switchgear is a state-of-the-art low-voltage distribution cabinet that exceeds the rigorous standards set by energy authorities, power consumers, and design entities. It embodies safety, cost-effectiveness, rationality, and dependability, making it a standout choice for high-load scenarios. With its high breaking capacity and superior dynamic and thermal stability, the GGD Fixed Switchgear Cabinet offers flexible and convenient electrical schemes, a strong series, and practical utility. It is perfectly suited for AC 50Hz power distribution systems with a rated operating voltage of 380V and a rated current up to 3150A, serving as a pivotal interface for energy conversion, distribution, and control in various applications.

Application Areas

The GGD Fixed Switchgear Cabinet is widely deployed across a diverse range of applications, including:

• Power plants and substations
• Energy sector power distribution systems
• Coal, oil, and chemical industries
• Transportation and logistics sectors, including aviation, railways, and port facilities
• Architectural structures such as high-rise buildings and sports venues
• Industrial and mining enterprises, and large-scale manufacturing industries

Technical Features

1. Fully Enclosed Structure: Equipped with TMY hard copper busbars, horizontally mounted in a dedicated frame at the top of the cabinet, and vertically secured with busbar clamps for safety and stability.

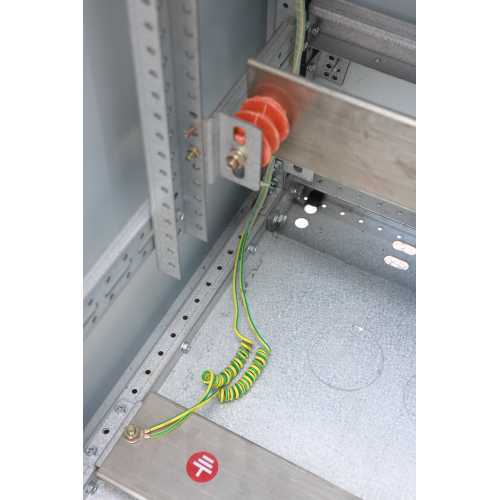

2. Advanced Protective Circuitry: Features a dedicated PE line and conductive metal components, with the N busbar positioned at the front of the cabinet for easy maintenance and accessibility.
3. Durable Main Structure: Crafted from 8MF steel, cold-formed and assembled with a modular hole pattern of E=20mm, and coated with a powder coating for enhanced corrosion resistance.

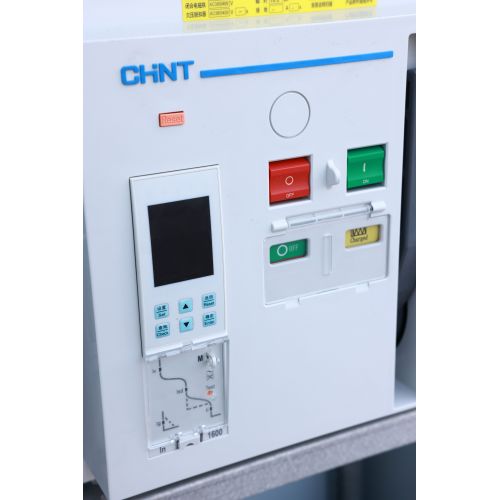

4. Central Switch Configuration: The switch is centrally positioned within the cabinet, with upper connection terminals linked to the horizontal busbar and lower connection terminals connected to the circuit breaker for optimized power management.

Product Advantages

1. Flexibility: Offers high flexibility in electrical scheme design to meet specific application needs.
2. Modular Assembly: Designed for easy combination and modular assembly, ensuring seamless integration.
3. Adaptability: Features a strong series adaptability for various power distribution needs.
4. Practicality: Delivers high practicality for diverse power distribution requirements.
5. Innovative Structure: Boasts an innovative structure for enhanced performance and functionality.
6. Safety and Reliability: Provides an elevated protection class for superior safety and reliability.

Conclusion

The GGD Fixed Switchgear Cabinet is a critical asset for power systems, enhancing the reliability and efficiency of power distribution while reducing long-term operational costs. It is an indispensable component for modern electrical infrastructure, ensuring that power is distributed safely, economically, and reliably. With its advanced features and robust design, the GGD Fixed Switchgear Cabinet stands as a testament to innovation in electrical distribution, making it a preferred choice for stakeholders in the energy sector.
