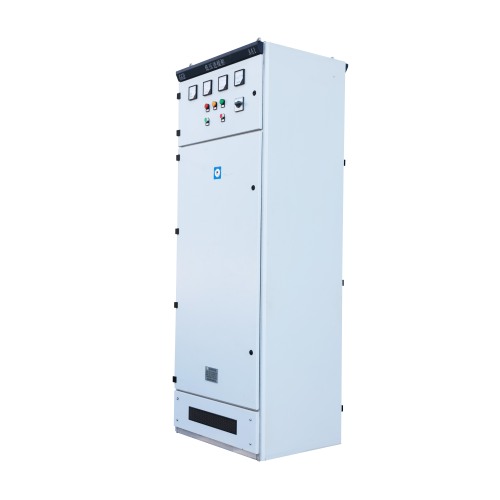

GGD Fixed Switchgear Cabinet: Power Distribution Excellence

Product Description

The GGD Fixed-Type electric switchgear is a leading-edge solution in low-voltage distribution, meticulously crafted to address the energy sector's need for safety, cost-efficiency, and dependability. Engineered to manage substantial electrical loads, this cabinet stands out for its high interrupting capacity and thermal stability, complemented by a flexible and secure electrical design. It is tailored for AC 50Hz systems with a rated voltage of 380V and is capable of handling currents up to 3150A, positioning it as a versatile choice for controlling and distributing electrical power across a spectrum of applications.

Application Areas

The GGD Fixed Switchgear Cabinet is purpose-built for critical power distribution environments, including:

• Power plants and substations
• Energy sector facilities
• Coal, oil, and chemical industries
• Transportation sectors, including aviation, railways, and port facilities
• High-rise buildings, sports venues, and industrial and manufacturing settings

Technical Features

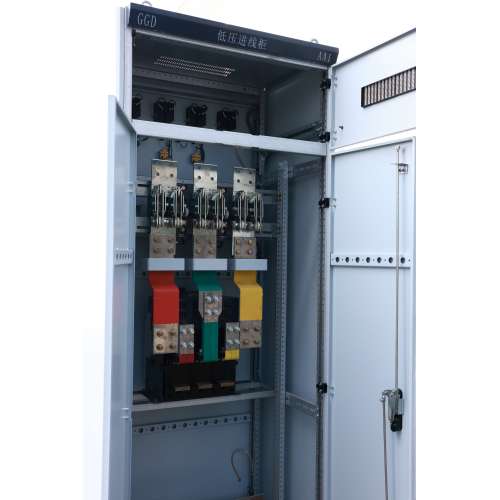

1. Fully Enclosed Design: Houses TMY hard copper busbars for enhanced conductivity, with horizontal busbars mounted in a dedicated frame at the top and vertical busbars secured with clamps for added stability.
2. Advanced Protective Circuitry: Incorporates a dedicated PE line and conductive metal components for safety, with the N busbar strategically positioned at the front of the cabinet for ease of access.
3. Durable Frame Construction: The main frame is constructed from 8MF steel, cold-formed and assembled with a modular hole pattern of E=20mm, ensuring flexibility and adaptability. It is coated with powder coating for superior corrosion resistance.

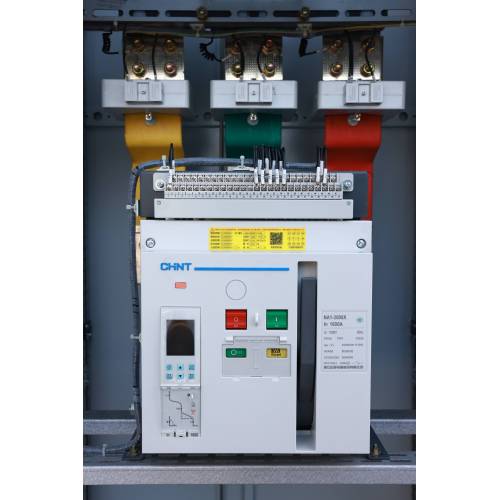

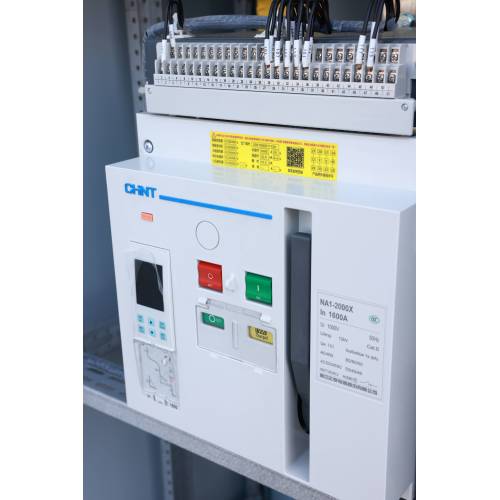

4. Central Switch Configuration: The switch is centrally located for ease of operation, with upper terminals connected to the horizontal busbar and lower terminals connected to the circuit breaker for efficient power management.

Product Advantages

1. Adaptability: Offers an adaptable electrical scheme design to cater to a variety of applications.
2. Simplified Integration: Features modular assembly for straightforward integration into existing systems.
3. Versatility: Provides a versatile series to meet a wide range of power distribution needs.
4. Practicality: Features a practical design for everyday power distribution requirements.
5. Innovation: Boasts an innovative structure for improved performance and functionality.
6. Safety and Durability: Delivers a high protection class for enhanced safety and long-term durability.

Conclusion

The GGD Fixed Switchgear Cabinet is a cornerstone in modern power systems, ensuring the reliable and efficient distribution of electrical power while reducing operational costs. It is an indispensable asset for advanced electrical infrastructure, providing a solid foundation for power management in the 21st century. With its advanced features and robust design, the GGD Fixed Switchgear Cabinet stands as a testament to innovation in electrical distribution.
