GGD type Fixed-mounted Switchgear

Fixed-mounted Ggd Low-voltage Switchgear

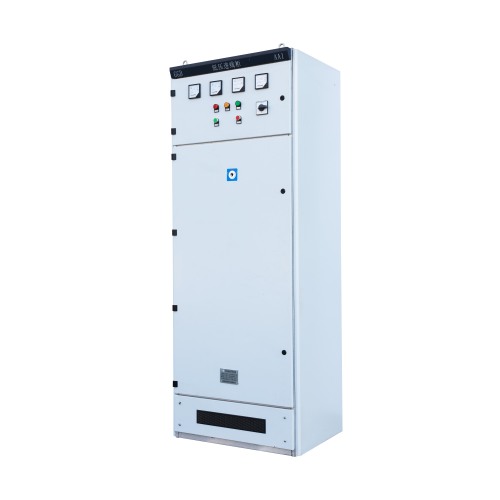

The GGD Fixed-Type electric switchgear is a sophisticated low-voltage distribution solution designed to meet the stringent requirements of energy departments, power users, and design teams. With a focus on safety, economy, and reliability, this cabinet is tailored for high-load conditions, delivering high breaking capacity and thermal stability. It offers adaptable electrical configurations and robust protection features, making it suitable for AC 50Hz systems with a rated voltage of 380V and a current rating up to 3150A. The GGD Fixed Switchgear Cabinet is the ideal choice for the conversion, distribution, and control of electrical energy in a variety of settings.

Application Areas

The GGD Fixed Switchgear Cabinet finds its application in a wide array of scenarios, including:

• Power plants and substations
• Energy sector distribution systems
• Coal, oil, and chemical industries
• Transportation sectors: aviation, railways, and port facilities
• Architectural structures: high-rise buildings and sports venues
• Industrial and manufacturing enterprises

Technical Features

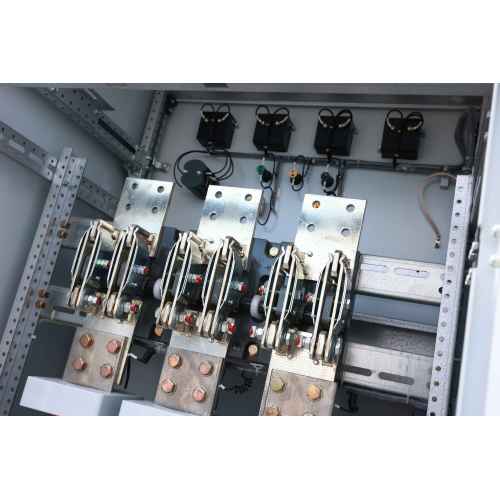

1. Fully Enclosed Design: Equipped with TMY hard copper busbars for optimal performance, featuring horizontal busbars mounted in a dedicated frame at the top and vertical busbars secured with clamps for added safety.
2. Advanced Protective Circuitry: Includes a dedicated PE line and conductive metal components for enhanced safety, with the N busbar positioned at the front for easy identification and maintenance.
3. Durable Frame Construction: Crafted from 8MF steel, the main frame is cold-formed and assembled with a modular hole pattern of E=20mm, ensuring flexibility and adaptability. It is finished with a powder coating for superior corrosion resistance.

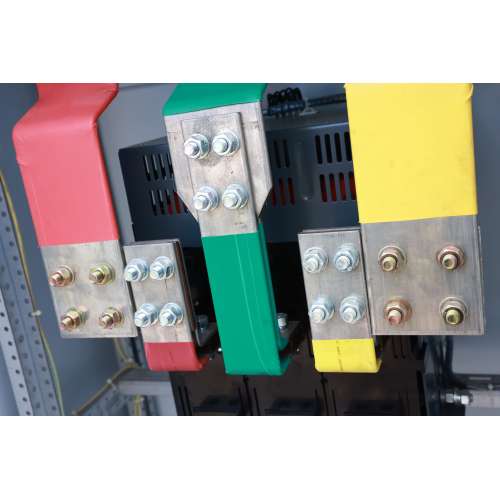

4. Central Switch Positioning: The switch is centrally positioned for convenient operation, with upper connection terminals linked to the horizontal busbar and lower terminals connected to the circuit breaker for efficient power management.

Product Advantages

Conclusion

The GGD Fixed Switchgear Cabinet is an indispensable component for modern power systems, ensuring reliable and efficient power distribution while minimizing operational costs. It is a vital asset for contemporary electrical infrastructure, providing a solid foundation for power management in the 21st century. With its advanced features and robust design, the GGD Fixed Switchgear Cabinet stands as a testament to innovation in electrical distribution.
