GGD Fixed Switchgear Cabinet: A Beacon of Safety and Reliability in Power Distribution

Product Description

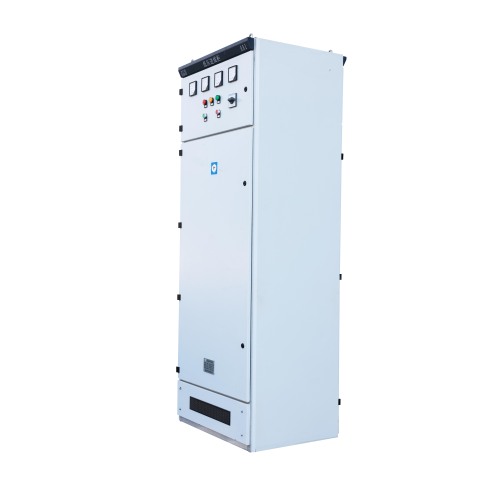

The GGD Fixed-Type electric switchgear is a meticulously designed low-voltage distribution cabinet that answers the call of energy authorities, power users, and design departments for a solution that emphasizes safety, economy, and reliability. Built to withstand high-load conditions, this switchgear delivers high breaking capacity and superior dynamic thermal stability. It offers a flexible electrical configuration, straightforward assembly, and robust protection, making it an ideal choice for a variety of power distribution needs. Engineered for AC 50Hz systems with a rated voltage of 380V and capable of handling currents up to 3150A, it is perfectly suited for power conversion, distribution, and control in diverse settings.

Application Areas

The GGD Fixed Switchgear Cabinet's broad applicability spans across:

• Utility substations and power distribution systems
• Energy-intensive industries including coal, oil, and chemical sectors
• Transportation sectors encompassing aviation, railways, and port facilities
• High-rise buildings, sports complexes, and industrial and manufacturing facilities

Technical Features

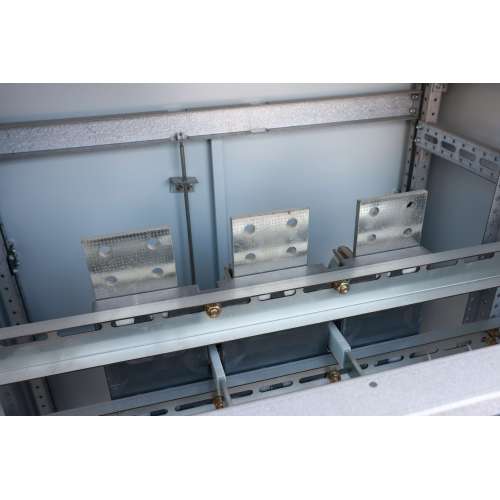

1. Fully Enclosed Structure: Houses TMY hard copper busbars for enhanced conductivity, with horizontal busbars mounted in a dedicated frame at the top and vertical busbars secured with clamps for safety.
2. Advanced Protective Circuitry: Features a dedicated PE line and conductive metal components for safety, with the N busbar positioned at the front for easy access.
3. Durable Main Frame: Constructed from 8MF steel, the cold-formed and assembled main frame boasts a modular hole pattern of E=20mm, ensuring flexibility. It is finished with a powder coating for superior corrosion resistance.

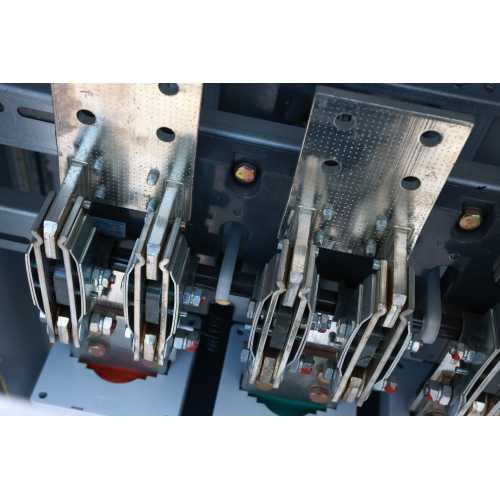

4. Central Switch Configuration: The switch is centrally located for convenient operation, with upper terminals connecting to the horizontal busbar and lower terminals to the circuit breaker for efficient power management.

Product Advantages

1. Versatility: Offers a versatile electrical scheme design to cater to various power distribution needs.
2. Modular Assembly: Designed for modular assembly, ensuring convenience and ease of integration.
3. Adaptability: Provides an adaptable series suitable for a wide range of applications.
4. Practical Utility: Delivers practical utility for everyday power distribution requirements.
5. Innovative Structure: Features an innovative structure for enhanced functionality and performance.
6. High Protection Class: Ensures a high protection class for safety and durability.

Conclusion

The GGD Fixed Switchgear Cabinet is an essential component for modern power systems, ensuring reliable and efficient power distribution while minimizing operational costs. It is a vital asset for contemporary electrical infrastructure, providing a solid foundation for power management in the 21st century. With its advanced features and robust design, the GGD Fixed Switchgear Cabinet stands as a testament to innovation in electrical distribution, making it a preferred choice for stakeholders in the energy sector.
