GGD Fixed Switchgear Cabinet: A Paradigm of Safety and Efficiency in Power Management

Product Description

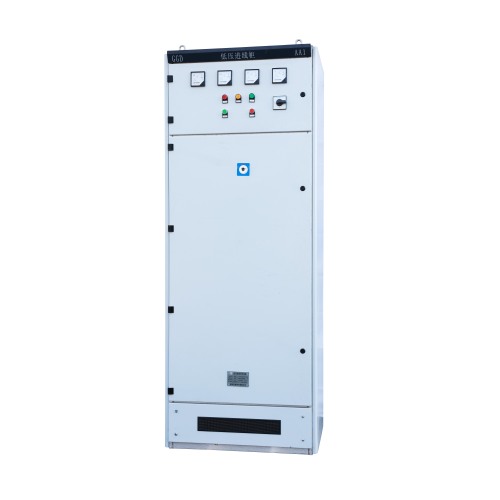

The GGD Fixed-Type electric switchgear is a cutting-edge low-voltage distribution cabinet, crafted with the collaboration of energy authorities, power users, and design departments. It is designed to prioritize safety, economy, and reliability while meeting the challenges of high-load conditions. This switchgear boasts superior breaking capacity, thermal stability, flexible electrical configurations, and a high degree of protection. It is specifically tailored for AC 50Hz systems with a rated voltage of 380V and a current rating up to 3150A, making it an essential component in the conversion, distribution, and control of electrical energy across a variety of applications.

Application Areas

The GGD Fixed Switchgear Cabinet's versatility makes it suitable for a wide range of applications, including:

• Power plants and substations
• Energy-intensive industries such as coal, oil, and chemical sectors
• Transportation infrastructure, including aviation, railways, and port facilities
• High-rise buildings, sports venues, and industrial and manufacturing settings

Technical Features

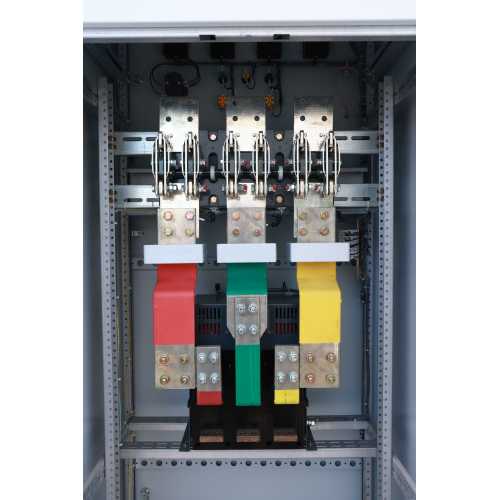

1. Fully Enclosed Design: Features TMY hard copper busbars for enhanced conductivity, with a dedicated horizontal busbar frame at the top and vertical busbars secured with clamps.
2. Advanced Protective Circuitry: Incorporates a dedicated PE line and conductive metal components, with the N busbar positioned at the front of the cabinet for easy access and maintenance.
3. Durable Main Frame: Constructed from 8MF steel, the cold-formed and assembled main frame has a modular hole pattern of E=20mm, ensuring flexibility. It is coated with powder coating for enhanced corrosion resistance.

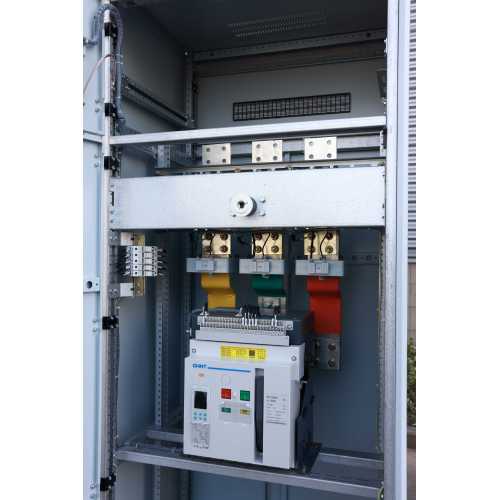

4. Central Switch Positioning: The switch is centrally located for convenient operation, with upper terminals connected to the horizontal busbar and lower terminals connected to the circuit breaker for efficient power management.

Product Advantages

1. Adaptability: Offers high adaptability in electrical scheme design to meet specific application needs.
2. Modular Combination: Features easy and convenient modular combination for seamless integration into existing systems.
3. Versatility: Provides a versatile series suitable for a wide range of applications.
4. Practicality: Designed with strong practicality for diverse power distribution needs.
5. Innovative Structure: Features a novel structure for improved performance and functionality.
6. Safety and Reliability: Offers an elevated protection class for enhanced safety and reliability.

Conclusion

The GGD Fixed Switchgear Cabinet is a critical asset for power systems, enhancing the reliability and efficiency of power distribution while reducing long-term operational costs. It is an indispensable component for modern electrical infrastructure, ensuring that power is distributed safely, economically, and reliably. With its advanced features and robust design, the GGD Fixed Switchgear Cabinet stands as a testament to innovation in electrical distribution, making it a preferred choice for stakeholders in the energy sector.
