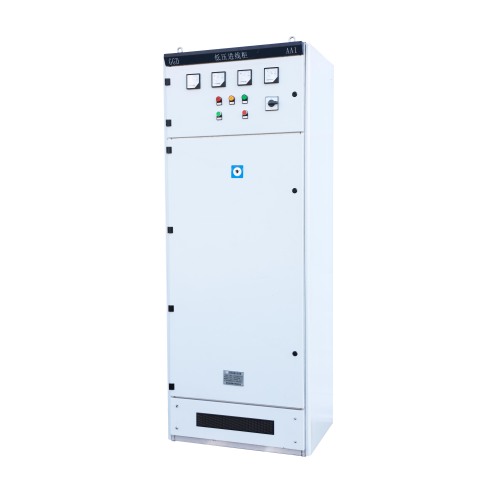

GGD Fixed Type Low Voltage Switchgear

Get Latest Price

Contact Now

Brand: Jutai

Description

Product Description

GGD Fixed Type Low-Voltage Switchgear for Industrial Applications

GGD Fixed Switchgear Cabinet: A Safe, Economic, and Reliable Power Distribution Hub

Product Description

The GGD Fixed-Type electric switchgear is a precision low-voltage distribution cabinet that exceeds the stringent requirements set by energy authorities, power users, and design departments. With a focus on safety, economy, and reliability, this switchgear is meticulously engineered to handle high-load conditions. It offers high breaking capacity, excellent thermal stability, flexible electrical configurations, and a high level of protection. Designed for AC 50Hz systems with a rated voltage of 380V and capable of handling currents up to 3150A, the GGD Fixed Switchgear Cabinet is a pivotal component in the conversion, distribution, and control of electrical energy across various applications.

Application Areas

The GGD Fixed Switchgear Cabinet's versatility makes it suitable for a wide range of scenarios, including:

Power plants and substations
Energy-intensive industries such as coal, oil, and chemical sectors
Transportation infrastructure, including aviation, railways, and port facilities
High-rise buildings, sports venues, and industrial and manufacturing settings

Technical Features

1. The product consists of a closed cabinet. The busbar is made of TMY hard copper busbar. The horizontal busbar is installed on the top of the cabinet with a special busbar frame, and the vertical busbar is fixed with a busbar clamp.

2. The protection circuit of the switch cabinet is composed of a separately installed PE line and a conductive metal component that runs through the entire length of the arrangement. The N busbar is placed in the front of the cabinet.

3. The main frame of the cabinet is made of 8MF steel (bent cold-rolled steel) and is assembled with special connectors. Its installation modulus hole E=20mm is sprayed with plastic as a protective coating.

Product Advantages

High Adaptability: Offers high adaptability in electrical scheme design to meet specific application needs.
Modular Combination: Features easy and convenient modular combination for seamless integration into existing systems.
Versatile Series: Provides a versatile series suitable for a wide range of applications.
Strong Practicality: Designed with strong practicality for diverse power distribution needs.
Novel Structure: Features a novel structure for improved performance and functionality.
Elevated Protection Class: Offers an elevated protection class for enhanced safety and reliability.

Conclusion

The GGD Fixed Switchgear Cabinet is a critical asset for power systems, enhancing the reliability and efficiency of power distribution while reducing long-term operational costs. It is an indispensable component for modern electrical infrastructure, ensuring that power is distributed safely, economically, and reliably. With its advanced features and robust design, the GGD Fixed Switchgear Cabinet stands as a testament to innovation in electrical distribution, making it a preferred choice for stakeholders in the energy sector
