GGD Fixed Switchgear Cabinet: Optimal Safety and Efficiency in Power Distribution

Product Description

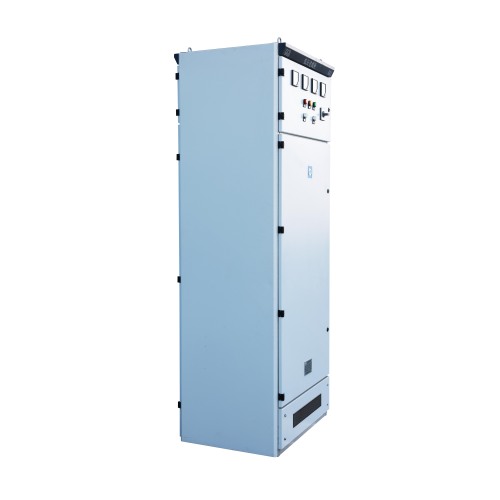

The GGD Fixed-Type electric switchgear is a meticulously engineered low-voltage distribution cabinet that sets new benchmarks for energy regulators, power consumers, and design teams by prioritizing safety, cost-efficiency, and reliability. Engineered to withstand high-load scenarios, this switchgear excels in high breaking capacity and thermal stability, coupled with adaptable electrical configurations and robust protection levels. It is optimized for AC 50Hz systems with a rated voltage of 380V and can handle currents up to 3150A, making it an ideal solution for the conversion, distribution, and control of electrical power in a variety of applications.

Application Areas

The GGD Fixed Switchgear Cabinet is designed for a diverse range of applications, including:

• Power generation facilities and substations
• Energy sector distribution systems
• Coal, oil, and chemical industries
• Transportation sectors such as aviation, railways, and port facilities
• Architectural structures like high-rise buildings and sports venues
• Industrial and manufacturing enterprises

Technical Features

1. Fully Enclosed Design: Equipped with TMY hard copper busbars, the cabinet features a dedicated horizontal busbar frame at the top and vertical busbars secured with clamps for enhanced safety.

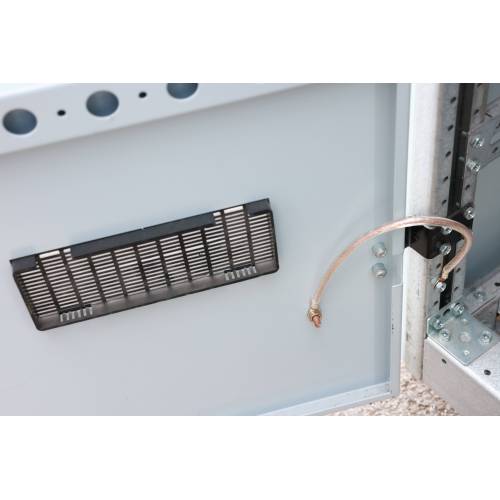

2. Comprehensive Protective Circuit: Includes a dedicated PE line and conductive metal components, with the N busbar strategically located at the front of the cabinet for easy access.
3. Durable Main Structure: Constructed from 8MF steel, the cold-formed and assembled main structure features a modular hole pattern of E=20mm, ensuring flexibility and adaptability. It is finished with a powder coating for superior corrosion resistance.
4. Central Switch Positioning: The switch is centrally positioned for convenient operation, with upper connection terminals linked to the horizontal busbar and lower terminals connected to the circuit breaker for efficient power management.

Product Advantages

1. Design Flexibility: Offers flexibility in electrical scheme design to accommodate specific application needs.
2. Modular Assembly: Features modular assembly for easy integration into existing systems.
3. Versatility: Provides a series that can accommodate a wide range of power distribution requirements.
4. Practicality: Designed for practicality in meeting the broad range of power distribution needs in daily operations.
5. Innovative Structure: Features an innovative structure for enhanced functionality and performance.
6. Safety and Durability: Offers a high protection class for superior safety and long-term durability.

Conclusion

The GGD Fixed Switchgear Cabinet is an essential component for modern power systems, ensuring reliable and efficient power distribution while minimizing operational costs. It is a vital asset for contemporary electrical infrastructure, providing a solid foundation for power management in the 21st century. With its advanced features and robust design, the GGD Fixed Switchgear Cabinet stands as a testament to innovation in electrical distribution, making it a preferred choice for stakeholders in the energy sector.
