Power Transformers

Power Transformers are essential electrical devices designed to transfer electrical power from one circuit to another without altering the frequency. They function on the principle of electromagnetic induction and are crucial for transmitting power between generators and primary distribution circuits. Here's an in-depth look at power transformers, their functions, types, and applications:

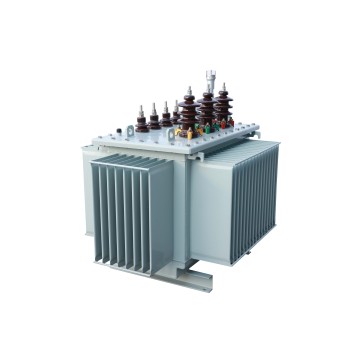

What is a Power Transformer?

A power transformer is a stationary device used to convert power from one circuit to another without changing the frequency. These transformers are generally used in power generation grids, distribution sectors, and power transmission systems. They are designed to step up or step down voltage levels efficiently for power transmission or distribution purposes.

How Does a Power Transformer Work?

Power transformers operate based on the principle of electromagnetic induction, described by Faraday’s law. They consist of a primary winding, a core made of laminated steel sheets, a secondary winding, and insulation materials. When an alternating current passes through the primary winding, it establishes a changing magnetic field around the transformer’s core. This changing magnetic flux permeates from the inner core and reaches the secondary winding wrapped around the same core, inducing an electromotive force in the secondary windingl

Functions of Power Transformers

1. Voltage Transformation: Power transformers step up voltages at generating stations for high-level transmission and step down voltages at substations closer to customers for safe distribution and use.
2. Isolation of Electric Circuits: They provide electrical isolation between the generating side and the distribution side, enhancing safety and preventing electrical faults from propagating.
3. Power Transmission over Long Distances: Transformers allow for the transfer of electricity over long distances with less technical loss by stepping up the voltage level at the generation and stepping it down at the distribution.
4. Keeping the System Stable and Efficient: They help stabilize the power network by controlling voltage levels, ensuring an intelligent flow of electric energy and avoiding congestion of transmission lines.
5. Protection against Overload and Faults: Transformers are equipped with protective devices like fuses, circuit breakers, and relays that protect against overloads, short circuits, and other electrical faults.

Types of Power Transformers

1. Iron Core Transformers: Constructed from laminated sheets of iron, providing a very low magnetic reluctance and high efficiency.
2. Toroidal Core Transformers: Feature ring-shaped cores usually made of iron or ferrite, which minimize magnetic flux leakage and maximize inductance and Q factors.

Applications of Power Transformers

Power transformers are used in a variety of applications, including:

• Power Generation and Distribution Stations: They are used to step up voltages for transmission and step down voltages for distribution to end-users.
• Industrial Applications: They manage voltage levels in large-scale industrial applications to ensure efficient power usage.
• Residential Power Supplies: They step down high transmission voltages to usable levels for safe use in homes.

In conclusion, power transformers play a vital role in the efficient and reliable transmission of electricity across various sectors. They manage voltage levels and facilitate the smooth distribution of electrical energy, making them an indispensable component in modern electrical power systems.
