Enclosed Switchgear

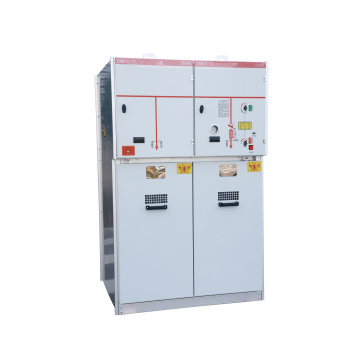

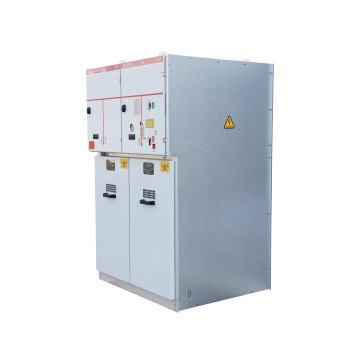

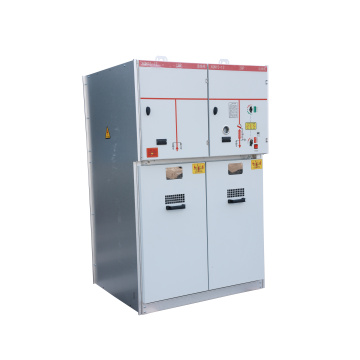

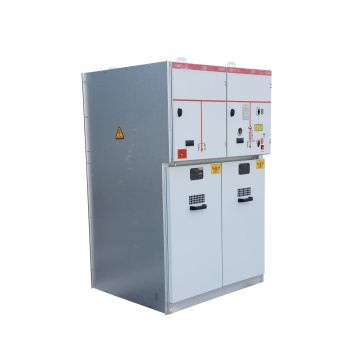

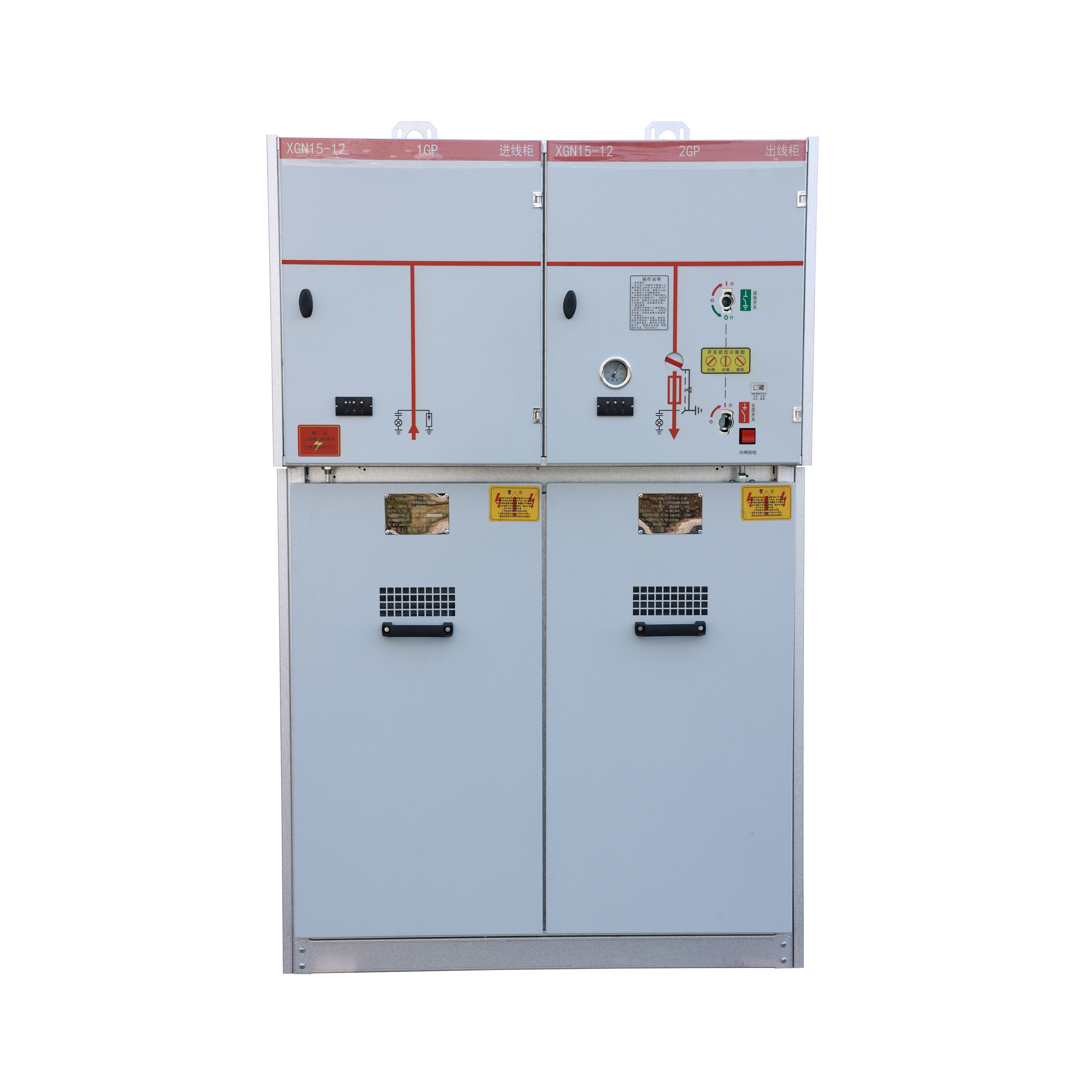

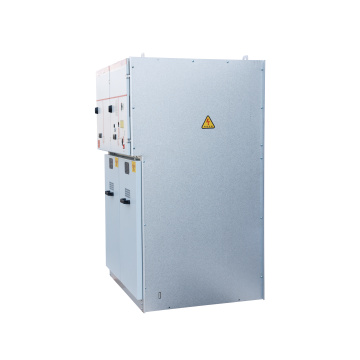

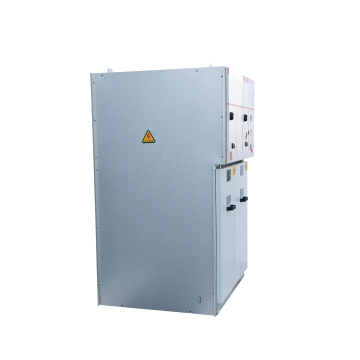

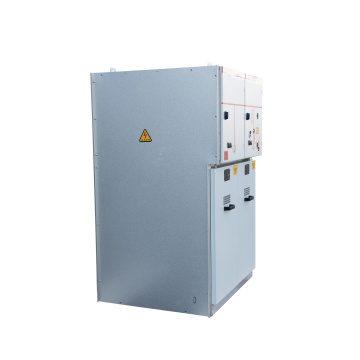

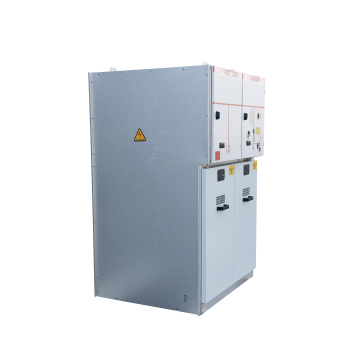

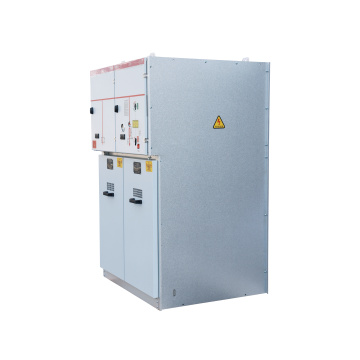

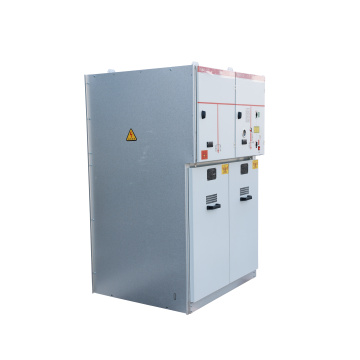

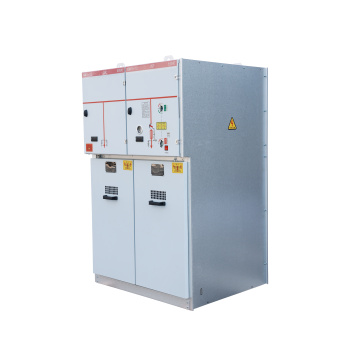

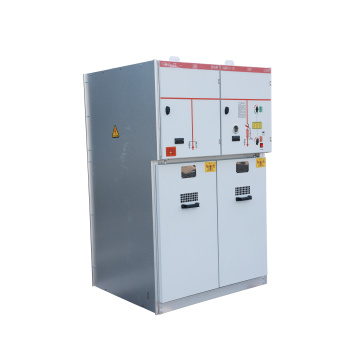

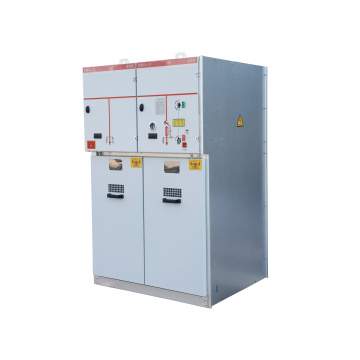

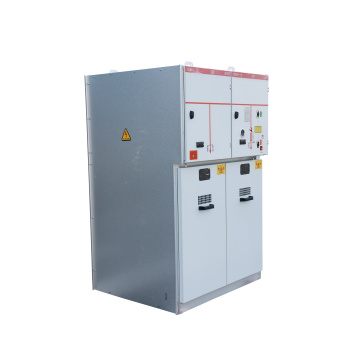

The HXGN-12 Box-Type Fixed SF6 High Voltage Switchgear is a state-of-the-art solution designed for medium-voltage power distribution networks. This switchgear is known for its compact design, reliability, and advanced features that make it a preferred choice for various applications. Here's an in-depth look into its classification, features, and applications:

1. Basic Product Details:

   • The HXGN-12 switchgear is a unitized AC metal-enclosed ring network switchgear that combines advanced technology with a compact design, offering enhanced flexibility and ease of installation .

2. Product Standards:

   • It adheres to international standards such as IEC 62271-200 and GB3906, ensuring reliability and conformity to industry norms .

3. Basic Parameters:

   • Rated Voltage: 12kV
   • Rated Frequency: 50/60 Hz
   • Rated Short-Time Withstand Current: 20kA
   • Rated Peak Withstand Current: 50kA
   • Rated Short-Circuit Breaking Current: 20kA
   • Busbar Rated Current: 630-2000A
   • Mechanical Life: 5,000 operations .

4. Product Attributes:

   • Compact Design: Integrates all components into a compact structure, minimizing space requirements.
   • SF6 Gas Insulation: Utilizes SF6 gas for insulation, ensuring excellent electrical performance and reduced environmental impact.
   • Modular Structure: Modular components allow for easy expansion and maintenance .

5. Product Functions:

   • The HXGN-12 switchgear serves as a central hub in ring network systems, facilitating reliable power distribution, switching, and protection functions. It ensures the uninterrupted flow of electricity within medium-voltage networks .

6. Features:

   • Reliability: Incorporates advanced technologies for reliable performance in various operating conditions.
   • Safety: SF6 gas insulation provides effective insulation and extinguishing capabilities during short-circuit events.
   • Smart Operation: Optional smart features for remote monitoring and control .

7. Advantages and Highlights:

   • Space-Efficient Design: The unitized structure optimizes space utilization, making it ideal for compact installations.
   • Environmental Friendliness: SF6 gas insulation is environmentally friendly and contributes to reduced greenhouse gas emissions.
   • Easy Maintenance: Modular design allows for quick and straightforward maintenance and component replacement .

8. Application Areas:

   • The HXGN-12 switchgear is well-suited for applications in urban distribution networks, industrial parks, and commercial complexes. Its compact design and reliable performance make it a preferred choice for space-constrained environments .

9. OEM Services:

   • Comprehensive OEM services are provided, delivering tailored solutions to meet individual client specifications .

10. Material Properties Highlight:

    • The HXGN-12 switchgear features high-quality materials, including robust metals for the enclosure and state-of-the-art insulating materials. SF6 gas, known for its excellent insulation properties, ensures superior electrical performance ,

In conclusion, the HXGN-12 Box-Type Fixed SF6 High Voltage Switchgear stands as a testament to the commitment to delivering innovative, environmentally friendly, and reliable solutions for the evolving needs of the medium-voltage power distribution industry .
