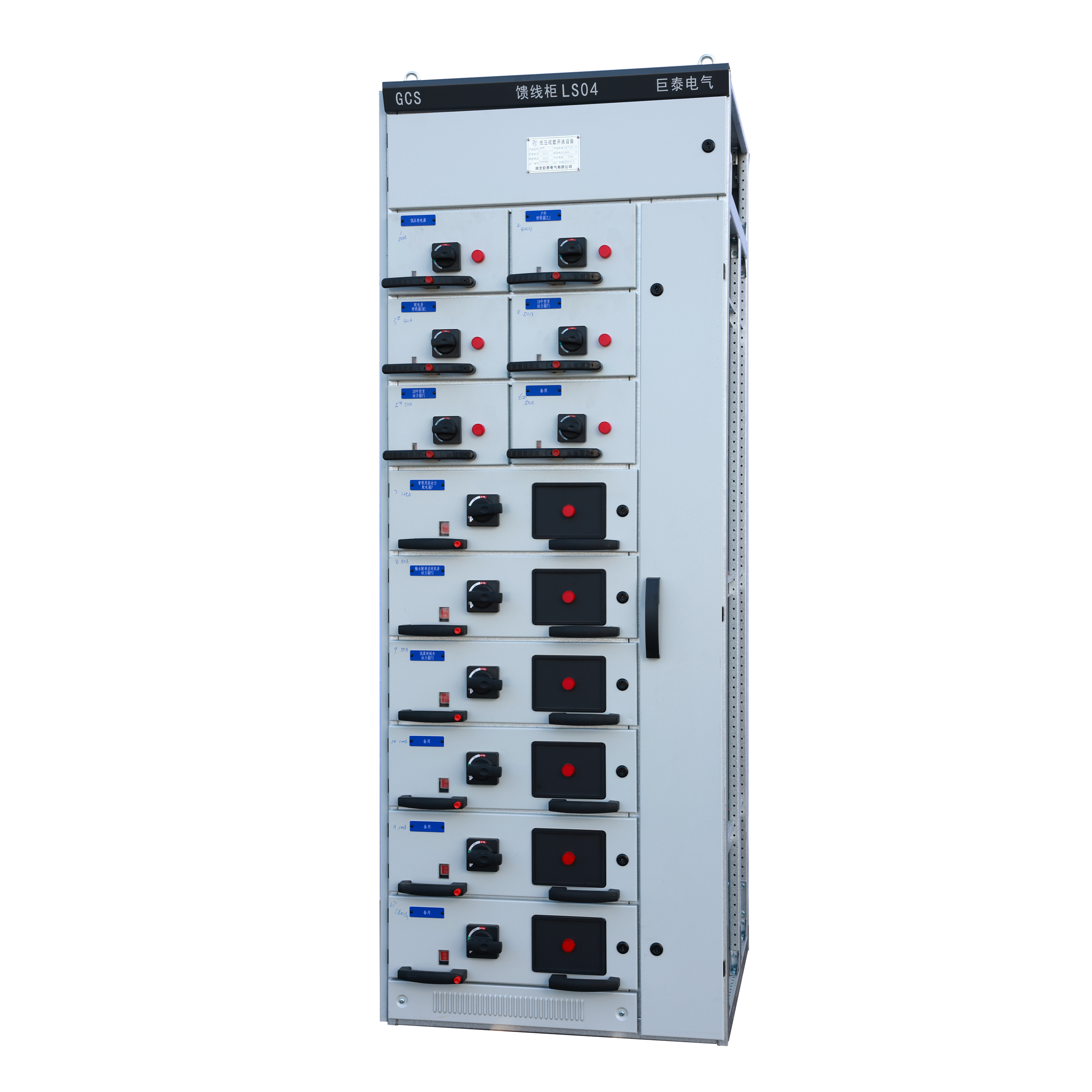

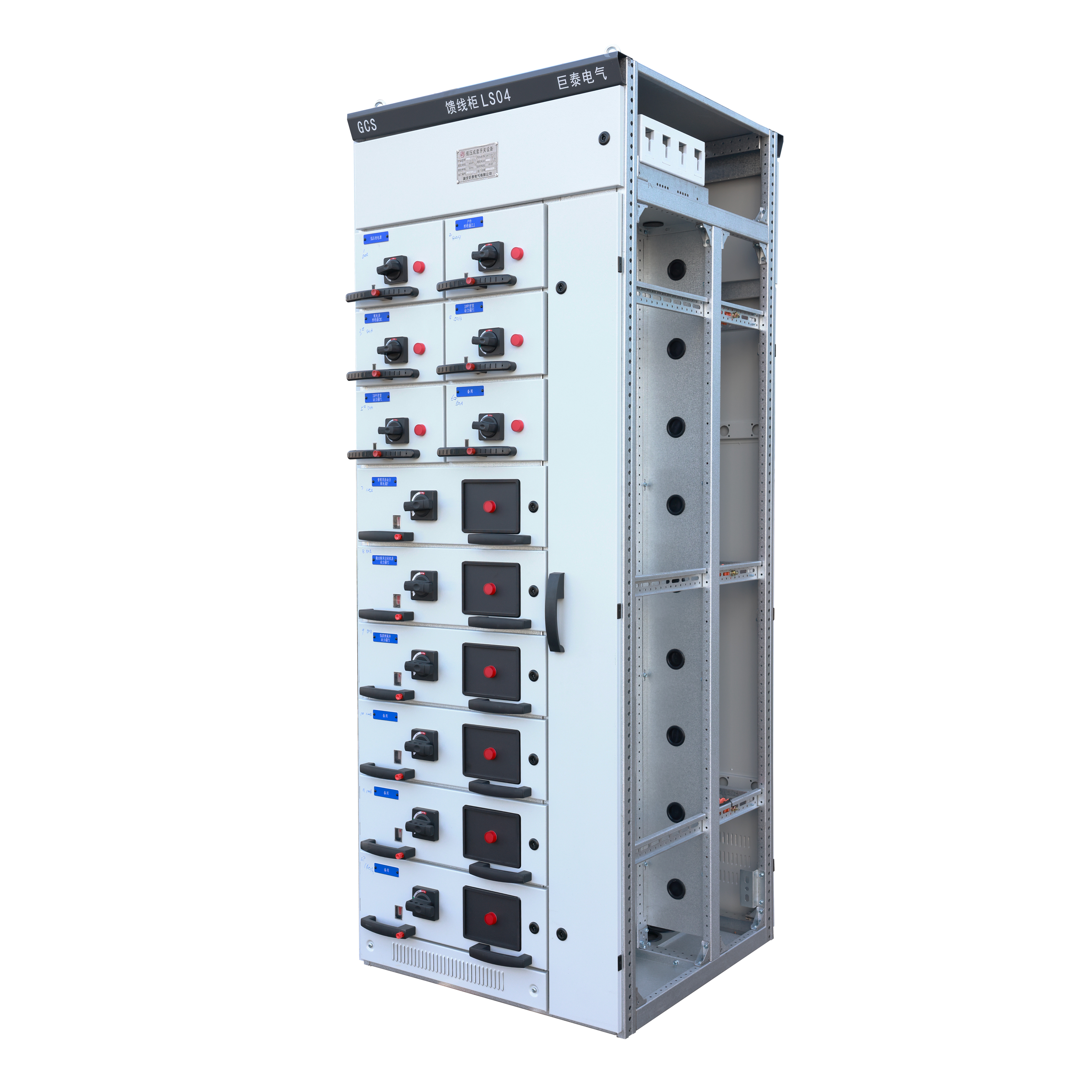

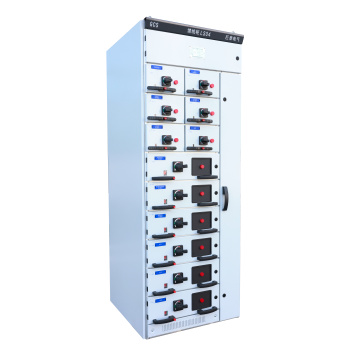

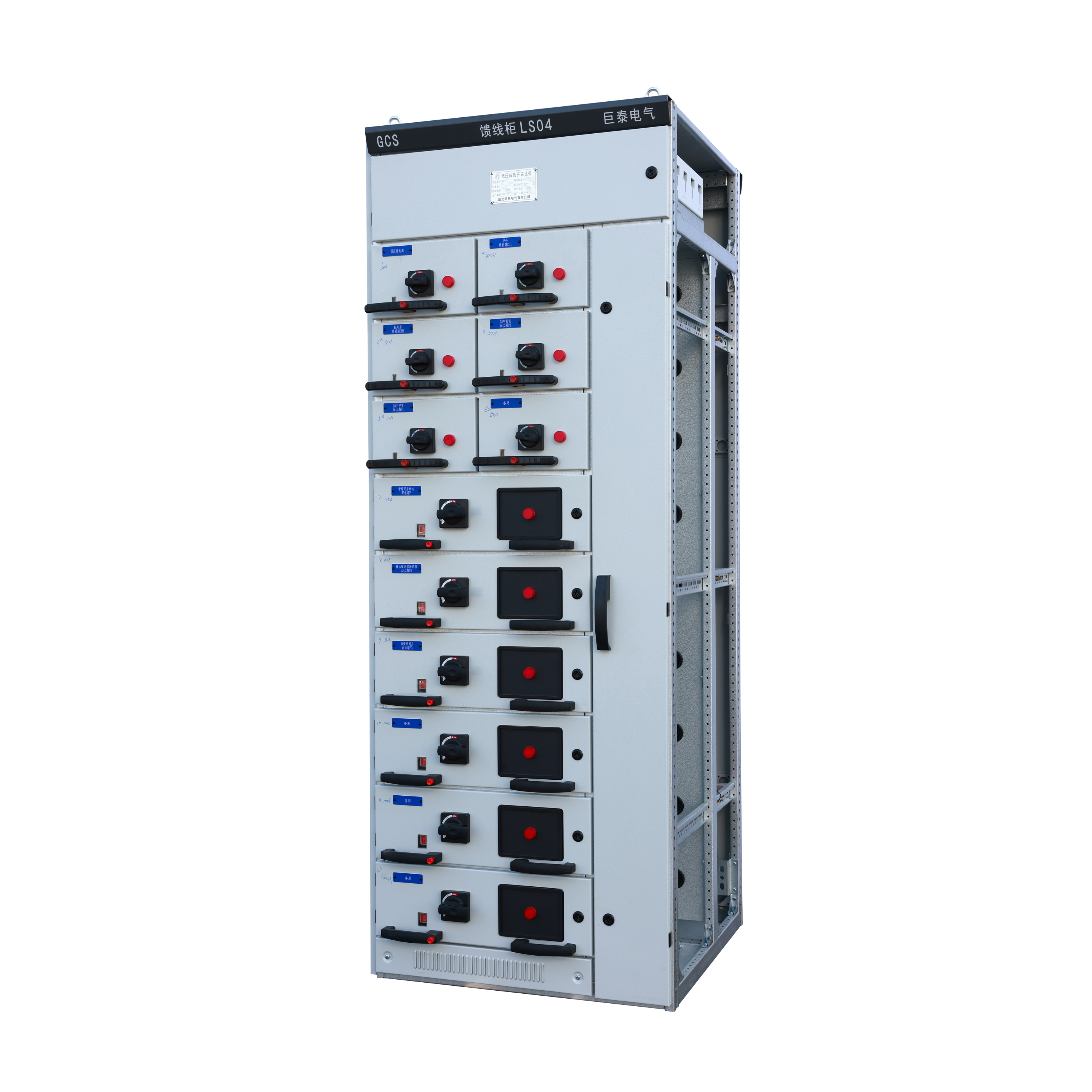

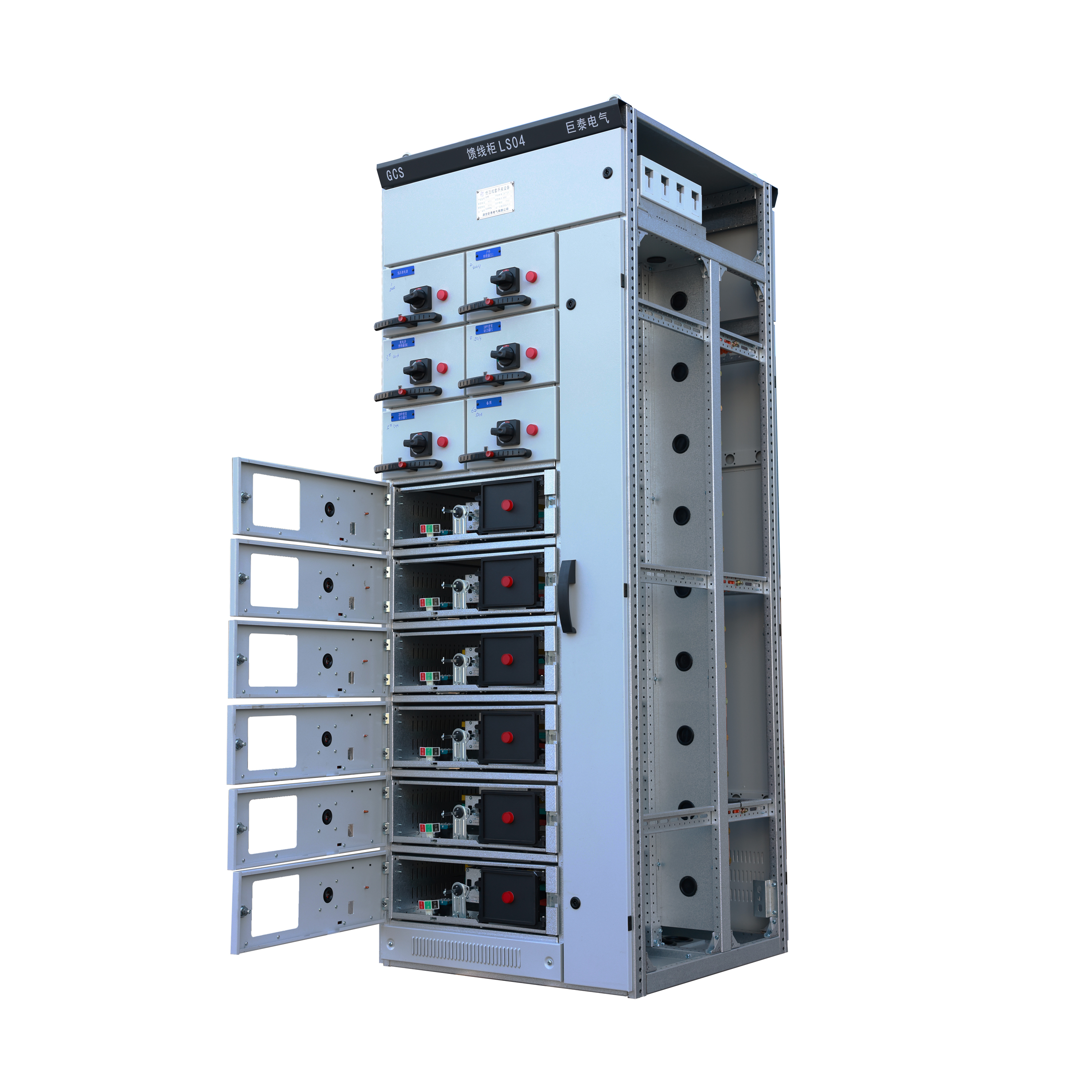

Drawer Switchgear

Features of Drawer Switchgear

1. Modular Design: Drawer switchgear adopts the principle of modular design, where each drawer unit is manufactured according to standard modulus sizes, allowing for easy combination and expansion to meet the requirements of electrical systems of different scales and complexity .

2. High Maintainability: Each electrical unit is independently packaged in a drawer, which can be separately pulled out for maintenance or replacement without causing a power failure of the whole system, greatly improving maintenance efficiency and system availability .

3. Safety Protection: The drawer will automatically cut off the power supply when pulled out, effectively preventing the risk of electric shock due to misoperation or maintenance, and improving the safety of operators .

4. High Flexibility: Drawer units with different functions, such as metering, protection, and control, can be flexibly configured according to actual needs to achieve customized solutions .

5. High Reliability, Safety, and Interchangeability: Drawer switchgear is known for its high reliability and safety. The functional units are separated from the busbar or cables by grounded metal plates or functional plates made of plastic, forming distinct areas for busbars, functional units, and cables. Each functional unit is also separated from each other by isolation measures .

6. Advanced Structure: The door of the drawer compartment is mechanically interlocked with the operating handle of the circuit breaker or isolating switch, and the door can only be opened when the handle is in the breaking position .

Classifications of Drawer Switchgear

Drawer switchgear can be classified based on several factors, including:

1. Insulation medium: They can be air-insulated, gas-insulated (using SF6 gas), or oil-insulated, each offering different levels of safety and environmental impact .

2. Voltage and Current Ratings: Classified according to the voltage and current ratings they can handle, which determines their application and design .

3. Interrupting Rating: Classified based on the short circuit current that the device can handle .

4. Manual/Motorized Operation: Further sub-classifications include manual or motorized operation and solenoid-operated switchgear .

Applications of Drawer Switchgear

Drawer switchgear is widely used in places with high requirements for system reliability, maintainability, and flexibility, such as:

1. Industrial and Mining Enterprises: For control and distribution systems with AC 50(60)HZ, rated working voltage less than or equal to 660V-690V, and rated current of 4000A and below .

2. High-Rise Buildings: As a centralized control of power distribution centers, they serve as a centralized power distribution center for high-rise buildings requiring high reliability of power supply .

3. Data Centers: Due to their high maintainability and flexibility, drawer switchgear is ideal for data centers where system uptime is critical .

4. Hospitals and Airports: These facilities require high system availability and safety, making drawer switchgear a preferred choice .

In conclusion, drawer switchgear is a versatile and advanced solution for low-voltage power distribution, offering a combination of high performance, safety, and adaptability to meet the demands of modern electrical infrastructure.
