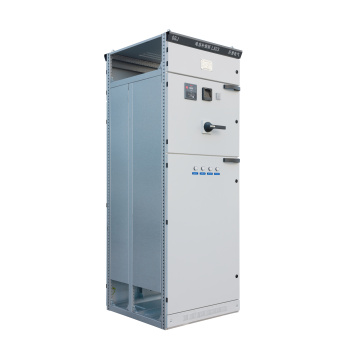

Switchgear Cabinet

Switchgear cabinets are essential components in electrical power distribution systems, playing a critical role in controlling, protecting, and isolating electrical circuits and equipment. They are designed to ensure the safe and efficient operation of various electrical and electronic applications. Here's an overview of switchgear cabinets, their functions, and applications:

Functions of Switchgear Cabinets

1. Control: Switchgear cabinets allow for the control of electrical power flow within a system by incorporating switching devices such as circuit breakers and switches.

2. Protection: They provide protection to the electrical system by incorporating protective devices like fuses, circuit breakers, and relays that prevent damage due to overcurrent or short circuits.

3. Isolation: They enable the isolation of parts of the electrical system for maintenance or safety purposes using isolators and disconnect switches.

4. Integration of Components: Switchgear cabinets integrate various components such as buses, switches, protective devices, and other control equipment into a single assembly.

Applications of Switchgear Cabinets

1. Power Distribution: Used in power distribution systems to distribute electricity from the main supply to the end-users.

2. Industrial Applications: Employed in industries like oil and gas, petrochemicals, metallurgy, and manufacturing for power control and distribution.

3. Residential and Commercial Buildings: Installed in residential complexes and commercial buildings for efficient power management.

4. Infrastructure Projects: Utilized in infrastructure projects such as highways, bridges, and public facilities for reliable power supply.

Types of Switchgear Cabinets

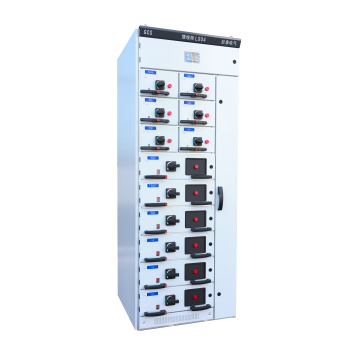

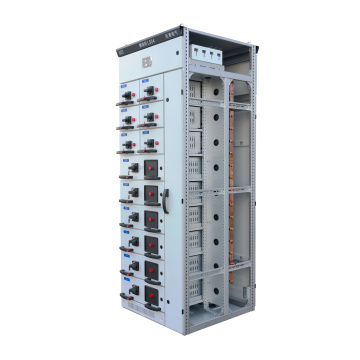

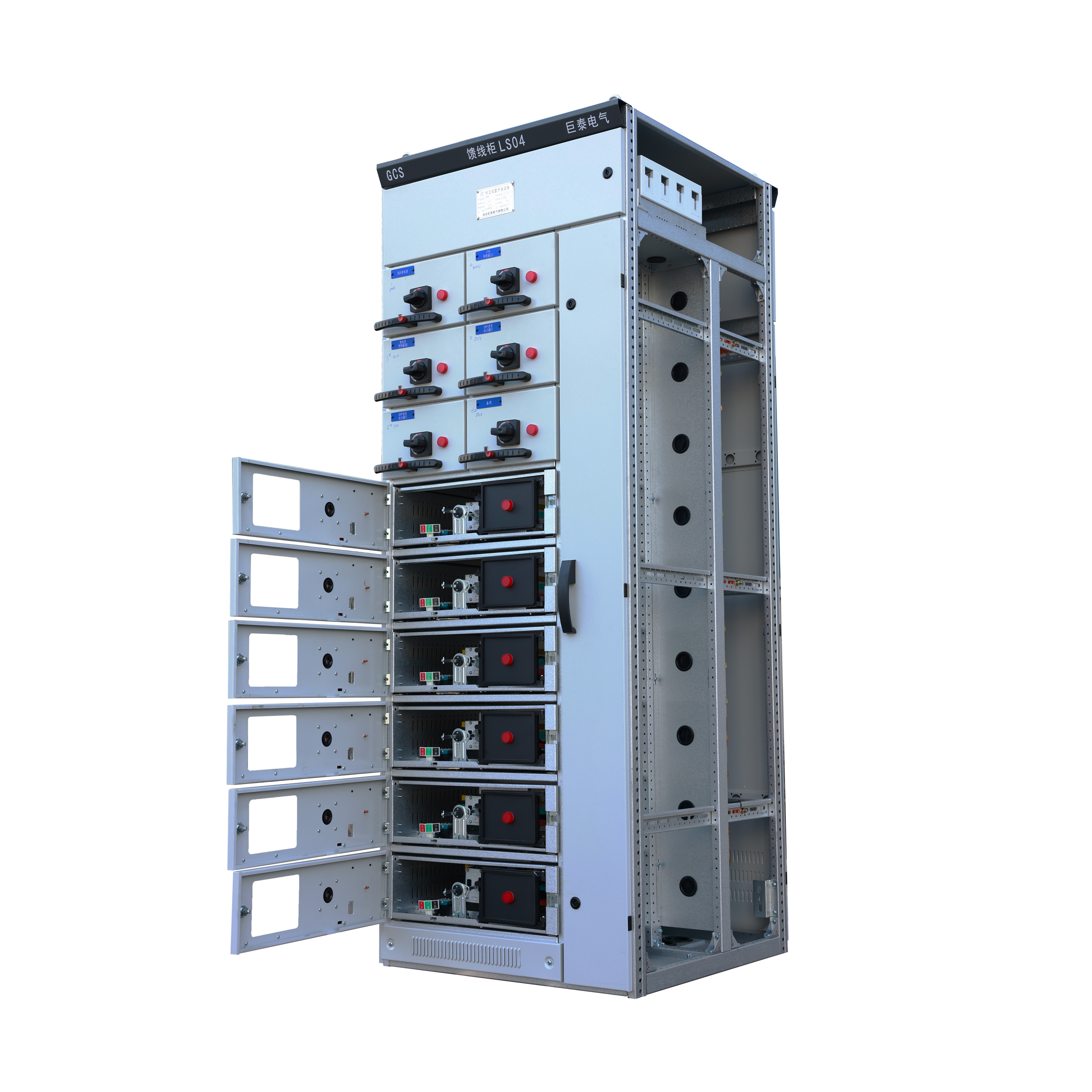

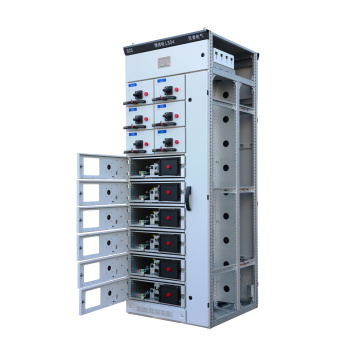

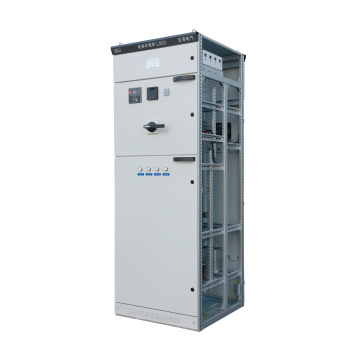

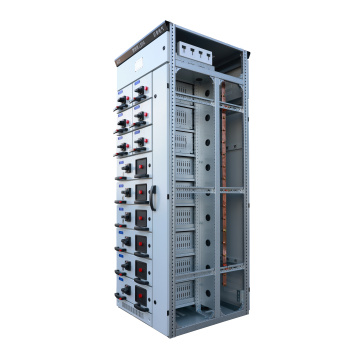

1. Low Voltage Switchgear Cabinets: Designed for AC 1000V and below, including types like PGL, GGD, GCK, GBD, and MNS.

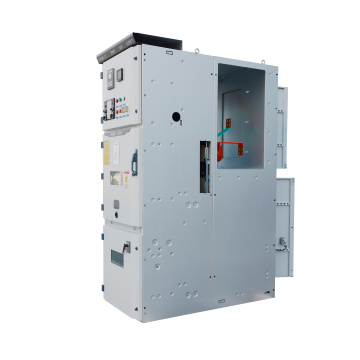

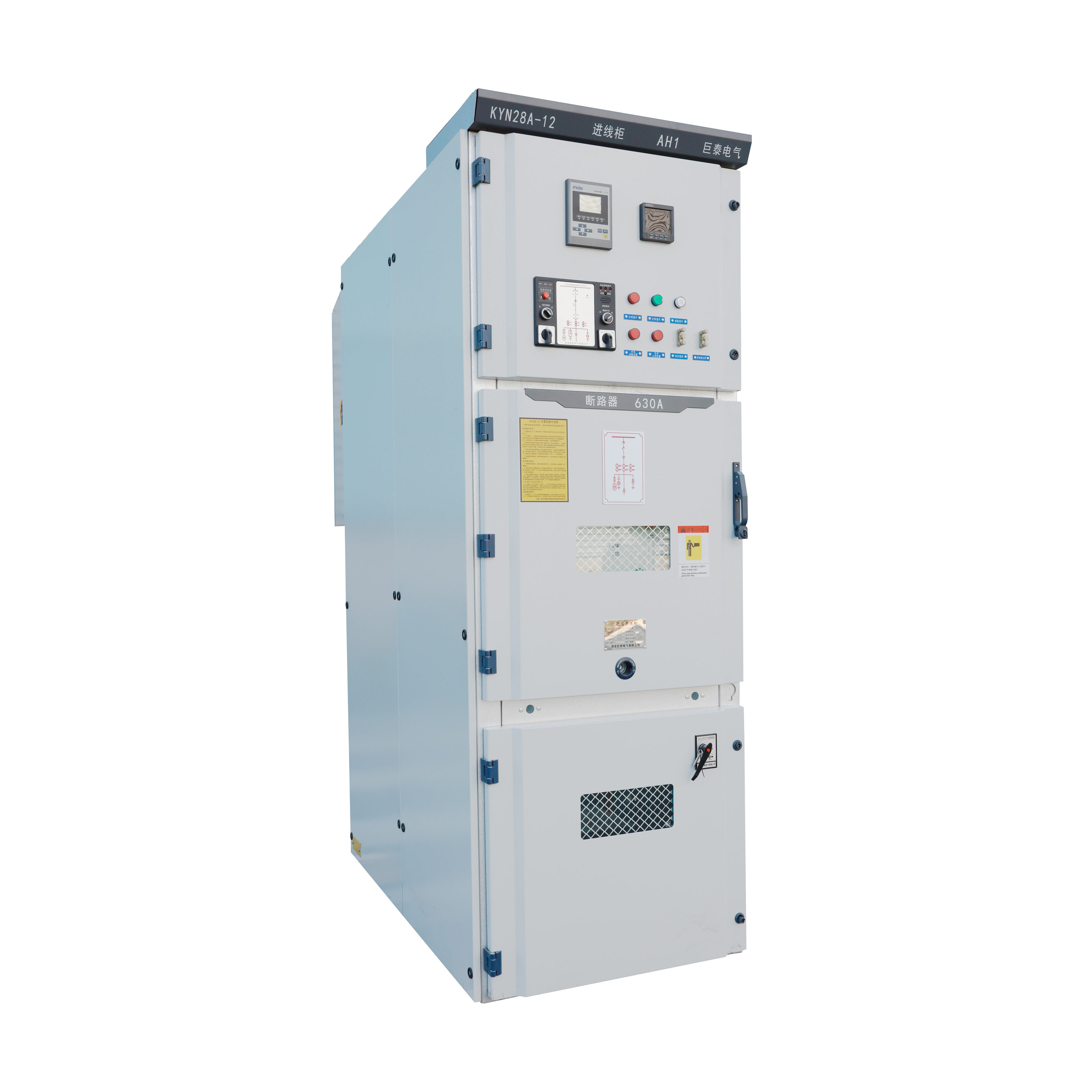

2. High Voltage Switchgear Cabinets: Designed for voltages above AC 1000V, including types like GG-1A, XGN15, and KYN48.

3. DC Switchgear Cabinets: Used for direct current applications.

4. Open-Type Switchgear Cabinets: With exposed structures, suitable for environments with less severe environmental conditions.

5. Metal-Enclosed Switchgear Cabinets: Encased in metal to provide protection against external factors and internal arcing.

6. Metal-Clad Switchgear Cabinets: A type of metal-Enclosed Switchgear with additional protective features.

Benefits of Sourcing Switchgear Cabinets

1. Cost Savings: Sourcing switchgear cabinets wholesale offers cost benefits due to bulk buying advantages.

2. Streamlined Supply Chain Management: It simplifies supply chain management with improved lead times and customization options.

3. Quality Assurance: Ensuring high-quality switchgear cabinets from reputable manufacturers meets electrical standards and industry requirements.

Switchgear cabinets are a standout piece in the switchgear collection, offering exceptional quality and style within the electrical and electronics industry. They are crucial for controlling, protecting, and isolating electrical circuits and equipment, ensuring safe and efficient operation in various applications.
